Datasheet 3D Model

ZA9704-AL No-Opto Flyback Transformer

for PMP30750 by Texas Instruments

Optimized for PMP30750 3.5 W automotive dual-output PSR flyback regulator by Texas Instruments
Designed for 150 kHz with 6 – 36 V input voltage
2200 Vrms, one minute isolation (hipot) between primary and secondary windings
AEC-Q200 qualified

Buy Now:

Request a Sample:

Typical Application

Works with Texas Instruments PMP30750

Output 1		Power	Fsw
Sec1	Sec2	Power	Fsw
17.5 V , 0.1 A	17.5 V , 0.1 A	3.5 W	150 kHz

Specifications

Electrical specifications at 25°C.

Part number (Hover for schematics)	Inductance at 0A (µH) 2 (Tolerance: ±10%)	Isat (A) 3	DCR max			Leakage Inductance max (µH) 4	Turns Ratio	Isolation Voltage (Vrms) 5
Part number (Hover for schematics)	Inductance at 0A (µH) 2 (Tolerance: ±10%)	Isat (A) 3	Pri (Ω)	Sec1 (Ω)	Sec2 (Ω)	Leakage Inductance max (µH) 4	Pri : Sec1 : Sec2	Isolation Voltage (Vrms) 5
ZA9704-ALD	33	2.0	0.135	0.604	0.604	0.43	1 : 1 : 1	2200

Notes

Both secondary outputs (Sec1 and Sec2) are at 17.5 V, 0.10 A.
Inductance is for the primary, measured at 150 kHz, 0.1 Vrms, 0 Adc.
Isat: DC current that causes the primary inductance to drop 30% from its value without current.
Leakage Inductance is for the primary, measured with secondary windings shorted together.
2200 Vrms / 3111 VDC , one minute isolation (hipot) between primary and secondary windings.

Termination:

RoHS tin-silver-copper over tin over nickel over phos bronze.

Packaging:

D = 13" machine-ready reel
EIA 481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

−40°C to +125°C

Storage temperature range:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximum part temperature:

+165°C (Ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

L vs Current

Schematics

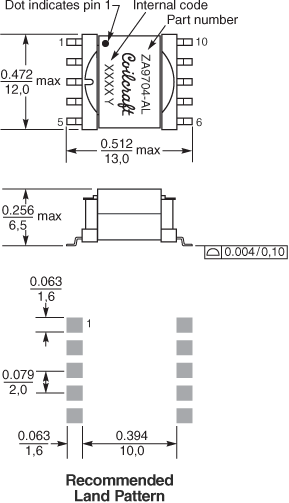

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	330	100	13	30,4	24,4	24	16	4	2	6,13	0,36

General specification

Core Material:

Ferrite

Weight:

1.2 − 1.4 g

Packaging:

500/13″ reel Plastic tape: 24 mm wide, 0.36 mm thick, 16 mm pocket spacing, 6.13 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
