HTX8045 Isolation Transformers

The HTX8045 transformer introduces a chip-style construction that represents an advancement over traditional core and bobbin designs. This innovative approach not only reduces the size of the component, but also streamlines it for a highly automated manufacturing process, resulting in a more cost-effective solution. The HTX8045 is particularly well suited for use in gate drive circuits and isolated SPI communication in both industrial and automotive applications. It offers higher isolation voltage compared to the HTX7045.

5K VDC Hi-Pot ideal for isolated SPI communication and gate drive applications
Applications include Battery Management Systems and Industrial Networking
5.9 mm creepage and clearance Material Group IIIa (175 ≤ CTI < 400)
- Insulation level may be Functional, Basic, or Reinforced depending on application variables such as working voltage, pollution degree, OVC, and altitude. Please contact Coilcraft for full details.
Reduced board space compared to traditional core and bobbin types
Designed and fabricated for systems mounted in harsh automotive conditions
AEC-Q200 qualified

Buy Now:

Part number

Find my part

Count	Unit price
1	$3.95
100	$3.23
400	$2.42
800	$1.46
1000	$1.14

For high volume or non-stock items, request a quote.

Termination

R = Tin over nickel over silver glass frit

Packaging

C = 7" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number 1 (Hover for schematics)	Inductance at 0A (µH) 2 (Tolerance: ±30%)	DCR max 3		Leakage Inductance max (µH) 4	Turns Ratio	Capacitance max (pF) 5	Volt-time product (V-µs) 6	Isolation Voltage (Vrms) 7
Part number 1 (Hover for schematics)	Inductance at 0A (µH) 2 (Tolerance: ±30%)	Pri (Ω)	Sec (mΩ)	Leakage Inductance max (µH) 4	Pri : Sec	Capacitance max (pF) 5	Volt-time product (V-µs) 6	Isolation Voltage (Vrms) 7
HTX8045-903CRC	90	0.47	830.00	0.40	1 : 2	18	25.9	3535
HTX8045-164ARC	160	0.55	550.00	0.70	1 : 1	16	34.6	3535

Notes

When ordering, please specify turns ratio and packaging codes: e.g. HTX8045-164ARC
Turns ratio: A = 1 : 1, C = 1 : 2
Inductance measured at 100 KHz, 0.1 Vrms, 0 Adc on an HP4263B (or equivalent).
DCR is measured on an HP4263B (or equivalent).
Leakage inductance is measured at 100 kHz, 0.1 Vrms on an HP4263B (or equivalent) with the other winding shorted.
Interwinding capacitance is measured at 250 kHz, 0.1 Vrms on AT3600/AT5600 across pins 1-4 with 2,3 open.
Volt-time is for reference and calculated with 2400 Gauss.
5000 VDC / 3535 Vrms; one minute isolation (hipot) measured between primary and secondary.

Termination:

RoHS compliant tin over nickel over silver glass frit.

Packaging:

C = 7" machine-ready reel
EIA 481 embossed plastic tape (400 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13" machine-ready reel
EIA 481 embossed plastic tape. Factory order only, not stocked (1200 parts per full reel).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

−40°C to +125°C

Storage temperature range:

Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C

Maximum part temperature:

+140°C

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

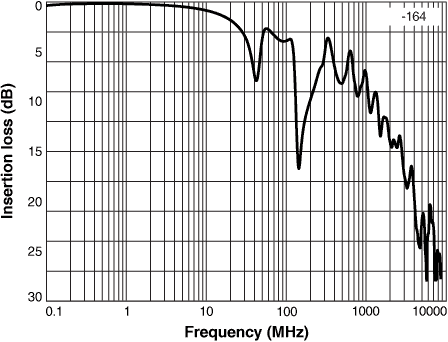

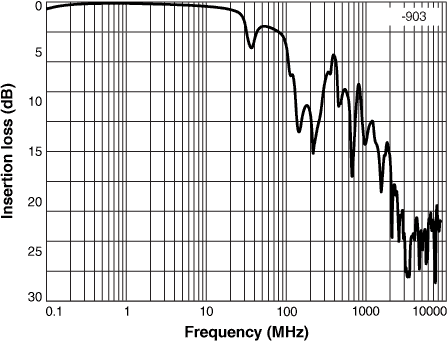

Insertion Loss

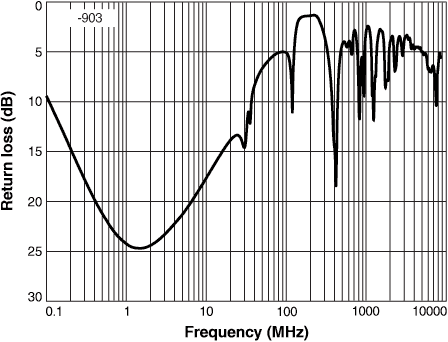

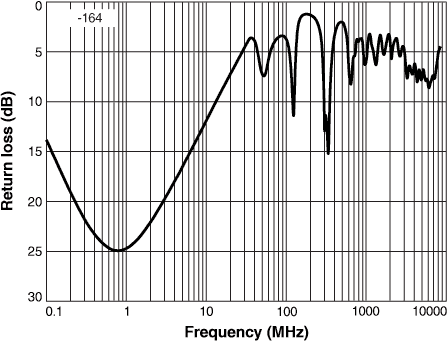

Return Loss

Schematics

Physical characteristics

Tape and Reel specification

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
400	1200*	178/330	60/100	13	30,4	24,4	24	8	4	2	5,5	0,40

* Special order

General specification

Core Material:

Ferrite

Weight:

0.53 − 0.54 g

Packaging:

Packaging 400/7″ reel; 1200/13″ reel Plastic tape: 24 mm wide, 0.40 mm thick, 8 mm pocket spacing, 5.5 mm pocket depth.

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
