ZA9801-AE Series

Isolation Transformer

Coilcraft's ZA9801 low-profile transformer is designed for use with SN650x transformer drivers from Texas Instruments and LT3999 from Analog Devices. The center-tapped push-pull transformer features increased creepage and clearance, higher isolation voltage and higher efficiency than previous generation products. It provides 5000 Vrms across the isolation barrier for interfaces such as CAN, RS-485, RS-422, RS-232, SPI, I2C , and low-power LAN in industrial and automotive applications. The ZA9801 is AEC Grade 1 qualified, making it an ideal solution for DC-DC converters in EV/HEV applications.

Center-tapped push-pull transformer optimized for Texas Instrument SN650x or Analog Devices LT3999 DC/DC transformer driver
High isolation, 5000 Vrms, one minute isolation (hipot) from primary to secondary
Extended version of the DA2303-AL, 8 mm Creepage and Clearance on Material Group 3
AEC-Q200 qualified

Buy Now:

Request a Sample:

Typical Application

Works with TI SN650x; ADI LT3999

Primary voltage	Secondary voltage	Power 1	Fsw
3.3 V	5 V	5 W	150 kHz

Specifications

Electrical specifications at 25°C.

Part number (Hover for schematics)	Inductance min (µH) 2	DCR max 3		Leakage Inductance max (µH) 4	Turns Ratio	Volt-time product (V-µs) 5	Isolation Voltage (Vrms) 6
Part number (Hover for schematics)	Inductance min (µH) 2	Pri (Ω)	Sec (mΩ)	Leakage Inductance max (µH) 4	Pri : Sec	Volt-time product (V-µs) 5	Isolation Voltage (Vrms) 6
ZA9801-AED	45.6	0.14	260.00	1.30	1 : 1.5	34.4	5000

Notes

Calculated output power based on 150 kHz operating frequency. Power varies depending on application.
Inductance is tested between pins 4 and 3 at 150 kHz, 0.1 Vrms, 0 Adc.
DCR is per winding at 25°C. For other operating temperatures, use this use this DCR at Temperature calculator.
Leakage inductance is for the primary with both windings connected in series and with the secondary windings shorted.
Volt-time product is for the primary, between pins 4 and 1 with pins 2 and 3 connected.
5000 Vrms, one minute isolation (hipot) from primary to secondary.

Termination:

E = RoHS tin-silver over tin over nickel over phos bronze.

Packaging:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (700 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

−40°C to +125°C

Storage temperature range:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximum part temperature:

+165°C

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Schematics

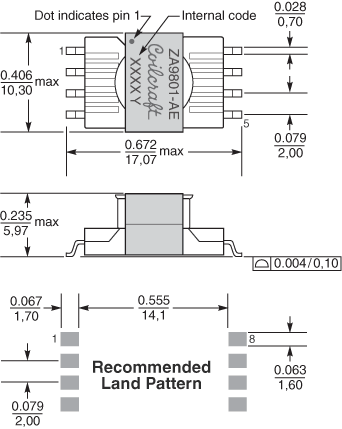

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
700	330	100	13	38,4	32,4	32	16	4	2	5,72	0,4

General specification

Core Material:

Ferrite

Weight:

1.2 g

Packaging:

700/13″ reel Plastic tape: 32 mm wide, 0.40 mm thick, 16 mm pocket spacing, 5.72 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Three reflows at >217°C for 90 seconds (+260°C ±:5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
