ZA9609-AE Active Clamp Forward Topology

for Texas Instruments PMP22075

The ZA9609 Active Clamp Forward Mode Transformers is specifically designed for use in PMP22075 for Texas Instruments. It has a wide input range of 9 V to 60 V along with high efficiency in a small package size. The ZA9609 is ideal for use in 60 W applications like 12 V to 48 V PoE power supplies.

Active Clamp Forward Transformer for PMP22075 for Texas Instruments
Wide input range 9 – 60 V
High efficiency in a small package
Ideal for isolated 60 W applications such as 12 – 48 V PoE Power supply

Buy Now:

Count	Unit price
1	$12.76
120	$11.17
264	$8.38
504	$5.03
1008	$3.92
2400	$3.36
5000	$3.07

For high volume or non-stock items, request a quote.

. in stock, ready to ship today.

Request a Sample:

Typical Application

Works with Texas Instruments PMP22075

Input Voltage	Output		Power
Input Voltage	Sec	Aux	Power
9 V — 60 V	12 V , 5 A	12 V , 0.05 A	60 W

Specifications

Electrical specifications at 25°C.

Part number (Hover for schematics)	Inductance at 0A (µH) 1 (Tolerance: ±30%)	DCR max			Leakage Inductance max (µH) 2	Turns Ratio	Isolation Voltage (Vrms) 3
Part number (Hover for schematics)	Inductance at 0A (µH) 1 (Tolerance: ±30%)	Pri (Ω)	Sec (mΩ)	Aux (mΩ)	Leakage Inductance max (µH) 2	Pri : Sec : Aux	Isolation Voltage (Vrms) 3
ZA9609-AE	113.9	0.0137	13.8000	240.0000	0.10	1 : 1.57 : 1.57	1500

Notes

Inductance is for the primary, measured at 250 kHz, 0.1 Vrms, 0 Adc.
Leakage inductance is for the primary and is measured with all secondary windings shorted.
1500 Vrms, one minute isolation (hipot) from primary to secondary.

Termination:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

Packaging:

24 per tray

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

40°C to +125°C

Storage temperature range:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximum part temperature:

+165°C (Ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Schematics

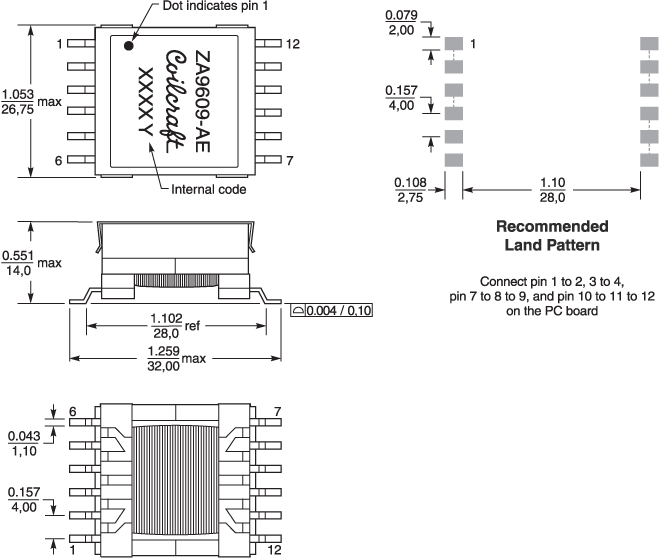

Connect pin 1 to 2, 3 to 4, pin 7 to 8 to 9,
and pin 10 to 11 to 12 on the PC board

Physical characteristics

General specification

Core Material:

Ferrite

Weight:

27.5 g

Packaging:

24 per tray

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
