FA267x and FA2732 PoE Transformers

for Silicon Laboratories Si3402

Specified by Silicon Laboratories for Si3402 PD Controller up to 10 W output
Designed for IEEE 802.3af-compliant PoE applications
Power inductor DO5010H-333 also specified for Si3400 circuit.

Buy Now:

Part number

Find my part

Count	Unit price
1	$3.07
200	$2.63
600	$2.29
1000	$1.79
2400	$1.57
5000	$1.42

For high volume or non-stock items, request a quote.

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Typical Application

Works with Skyworks Si3401/Si3402

Part number	Input Voltage	Output 1	Power	Fsw
FA2671-ALD	36 V — 72 V	3.3 V , 3 A	10 W	400 kHz
FA2672-ALD	36 V — 72 V	5 V , 2 A	10 W	400 kHz
FA2732-ALD	36 V — 72 V	12 V , 0.83 A	10 W	400 kHz

Specifications

Electrical specifications at 25°C.

Part number 2 (Hover for schematics)	Inductance at 0A (µH) 3 (Tolerance: ±10%)	Inductance min at 1.3 A (µH)	DCR max 4		Leakage Inductance max (µH) 5	Turns Ratio 6	Isolation Voltage (Vrms) 7
Part number 2 (Hover for schematics)	Inductance at 0A (µH) 3 (Tolerance: ±10%)	Inductance min at 1.3 A (µH)	Pri (Ω)	Sec (mΩ)	Leakage Inductance max (µH) 5	Pri : Sec	Isolation Voltage (Vrms) 7
FA2671-ALD	40.0	36.0	0.098	23.000	0.395	1 : 0.3	1500
FA2672-ALD	40.0	36.0	0.098	45.000	0.340	1 : 0.4	1500
FA2732-ALD	40.0	36.0	0.098	156.000	0.370	1 : 1	1500

Notes

Output is with the secondary windings connected in parallel.
When ordering, please specify packaging code: e.g. FA2672-ALD
Inductance is for the primary, measured at 400 kHz, 0.4 Vrms, 0 Adc.
DCR for the secondary is per winding.
Leakage inductance measured between pins 2 and 3 with all secondary pins shorted.
Turns ratio is with the secondary windings connected in parallel.
1500 Vrms, one minute isolation between primary and secondary

Termination:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +85°C

Storage temperature range:

Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+125°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Schematics

Secondary windings to be connected
in parallel on the PC board

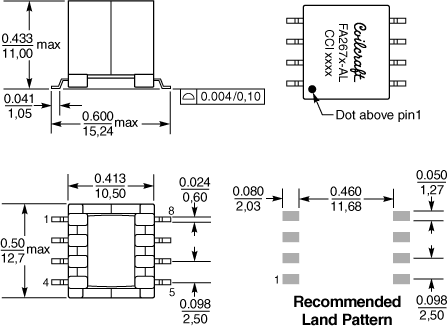

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	38,4	32,4	32	24	4	2	11,2	0,5

General specification

Core Material:

Ferrite

Weight:

3.8 – 3.9 g

Packaging:

200 per 13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 11.2 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.
