3D Model Datasheet

FA2636 Flyback Transformer

for Texas Instruments LM5001

Developed for Texas Instruments LM5001 Switch Mode Regulator
Isolated flyback transformer designed to operate in continuous mode
Designed for 16 – 36 Volt input; 250 kHz operating frequency

Buy Now:

Count	Unit price
1	$2.71
175	$2.53
700	$2.20
1400	$1.91
2800	$1.65
5000	$1.51

For high volume or non-stock items, request a quote.

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Typical Application

Works with Texas Instruments LM5001

Input Voltage	Output		Power	Fsw
Input Voltage	Sec	Aux	Power	Fsw
16 V — 36 V	5 V , 1 A	7.5 V , 0.02 A	5 W	250 kHz

Specifications

Electrical specifications at 25°C.

Part number 1 (Hover for schematics)	Inductance at 0A (µH) 2 (Tolerance: ±10%)	Inductance min at 1 A (µH)	DCR max (Ω) 3			Leakage Inductance max (µH) 4	Turns Ratio 5	Isolation Voltage (Vrms) 6
Part number 1 (Hover for schematics)	Inductance at 0A (µH) 2 (Tolerance: ±10%)	Inductance min at 1 A (µH)	Pri	Sec	Aux	Leakage Inductance max (µH) 4	Pri : Sec : Aux	Isolation Voltage (Vrms) 6
FA2636-AL_	160	144	0.225	0.078	0.340	1.6	1 : 0.25 : 0.375	1500

Notes

When ordering, please specify packaging code: e.g. FA2636-ALD
Inductance is for the primary, measured at 250 kHz, 0.2 Vrms, 0 Adc.
DCR for the secondary is per winding.
Leakage inductance measured between pins 3 and 2 with all other pins shorted.
Turns ratio is with the secondary windings connected in parallel.
1500 Vrms, one minute isolation from primary and auxiliary to secondary.

Termination:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations.

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

Environmental

Environmental:

RoHS compliant

Ambient temperature range:

–40°C to +85°C

Storage temperature range:

Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Schematics

Secondary windings to be connected
in parallel on the PC board.

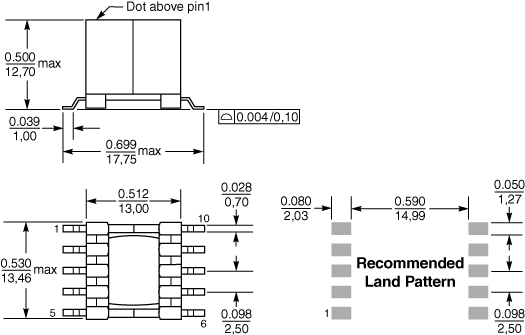

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	38,4	32,4	32	28	4	2	12,93	0,5

General specification

Core Material:

Ferrite

Weight:

6.28 g

Packaging:

175 per 13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12.98 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Only pure water or alcohol recommended
