ZD2020-AE Isolated buck transformer

for STMicroelectronics STEVAL-6986YT2DL

The ZD2020-BE iso-buck boost converter transformer, purpose-built for the STEVAL-6986YT2DL reference design, is optimized for systems using the A6986I from STMicroelectronics. This robust component handles input voltages from 5 V to 24 V, delivering dual isolated outputs tailored specifically for SiC MOSFET gate drivers, with typical output voltages of 20 V and -5 V. Rated for 1500 Vrms isolation, the transformer includes standard functional insulation, with optional basic or reinforced insulation available to meet specific application needs. Its AEC-Q200 qualification underscores its reliability and suitability for demanding automotive and industrial environments. For GaN gate drivers, the ZE2774-BE is the preferred choice.

Designed for an input voltage range of 5 to 24 V with dual isolated outputs
Suitable for isolated IGBT/SiC gate driver, On-board charger for HEV/EV, and industrial application.
Functional insulation only. Basic or reinforced versions can be made available per request.
AEC-Q200 qualified

지금 구매:

개수	단품 가격
1	$4.62
225	$2.84
450	$1.71
900	$1.33

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

E = Tin-silver over tin over nickel over phos bronze

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

STMicroelectronics STEVAL-6986YT2DL와(과) 호환

입력 전압	출력 1		전력	FSW
입력 전압	Sec1	Sec2	전력	FSW
12 V	20 V , 0.2 A	-5 V , 0.2 A	5 W	250 kHz

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±10%)	Isat (A) 3	DCR max			누설 인덕턴스 최대 (µH) 4	권수비	절연 전압 (Vrms) 5
부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±10%)	Isat (A) 3	Pri (Ω)	Sec1 (mΩ)	Sec2 (mΩ)	누설 인덕턴스 최대 (µH) 4	Pri : Sec1 : Sec2	절연 전압 (Vrms) 5
ZD2020-AED	20.0	1.9	0.138	426.0	175.0	0.73	1 : 1.56 : 0.44	1500

메모

Sec2 output -5 V, 0.20 A
Inductance is for the primary, measured at 250 kHz, 0.1 Vrms, 0 Adc.
DC current that causes the primary inductance to drop 30% from its value without current.
Leakage inductance is for the primary with the secondary windings shorted.
1500 Vrms, one minute isolation (hipot) between primary and secondary windings.

종단 처리:

RoHS-compliant, halogen free. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

패키지:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (900 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+165°C (Ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

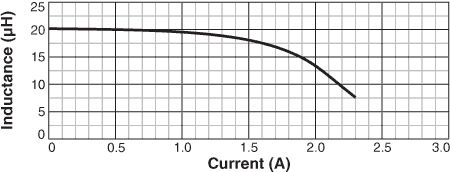

L vs Current

회로도

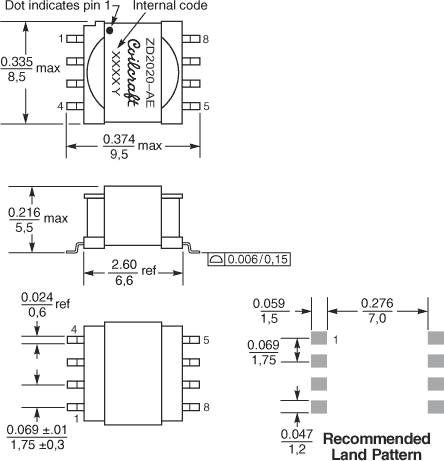

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
900	330	100	13	22,4	16,4	16	12	4	2	6,0	0,35

일반 사양

코어 소재:

Ferrite

중량:

0.57 – 0.77 g

패키지:

900 per 13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 6.0 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
