3D Model Datasheet

CU8758-AL Flyback Transformer

for Maxim MAX17597

Mounted on Maxim MAX17597 Evaluation Kit

사양

Electrical specifications at 25°C.

No Parts added

메모

종단 처리:

RoHS-compliant. 260°C compatible. RoHS tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C.
Tray packaging: –40°C to +80°C

최고 부품 온도:

135°C (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

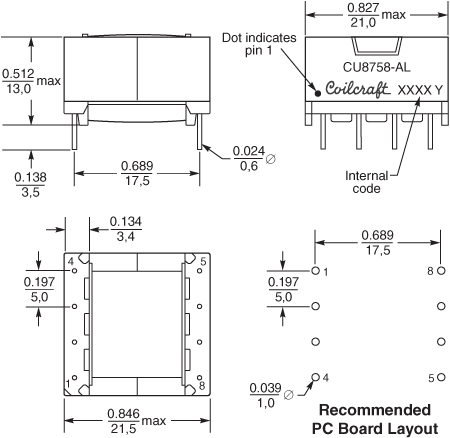

물리적 특성

일반 사양

코어 소재:

Ferrite

중량:

13.4 g

패키지:

100 parts per tray

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.
