Flyback Transformers

for Microchip Grid-Connected Solar Micro Inverter

Developed for Microchip for their Grid-Connected Solar Microinverter using dsPIC
For 220 Vac applications, KA4823-BL has been replaced by KA4823-CL, which has a higher SRF and higher efficiency.
Listed on Bill of Material for Reference Design AN1338

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$18.71
100	$16.04
500	$11.58
1000	$10.07
2500	$8.65
5000	$7.91

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

통상적인 적용 분야

Microchip AN1338와(과) 호환

부품 번호	입력 전압	출력	FSW
JA4635-AL	22 V — 55 V	110 V	150 kHz
KA4823-CL	22 V — 55 V	220 V	150 kHz

사양

Electrical specifications at 25°C.

부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) (허용 오차: ±10%)	Isat (A) 2	DCR max 3		누설 인덕턴스 최대 (µH) 4	권수비 5	절연 전압 (Vrms) 6
부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) (허용 오차: ±10%)	Isat (A) 2	Pri (Ω)	Sec (mΩ)	누설 인덕턴스 최대 (µH) 4	Pri : Sec	절연 전압 (Vrms) 6
JA4635-AL	28	10.5	0.008	106.000	0.138	1 : 6	3000
KA4823-CL	28	10.5	0.008	472.000	0.115	1 : 12	3000

메모

Inductance is measured at 150 kHz, 0.1 Vrms.
DC current at which the inductance drops 10% (typical) from its value without current.
DCR is with the secondary windings connected in parallel.
Leakage inductance is for the three windings of the primary with the secondary windings shorted.
Turns ratios are with the primary and secondary windings connected in parallel.
3000 Vrms, one minute primary to secondary isolation.

종단 처리:

RoHS-compliant. Tin-silver (96.5/3.5) over tin cover copper-plated steel wire terminations.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C

보관 온도 범위:

Component: –40°C to +85°C.
Tray packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

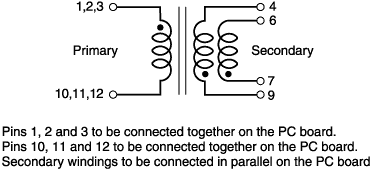

회로도

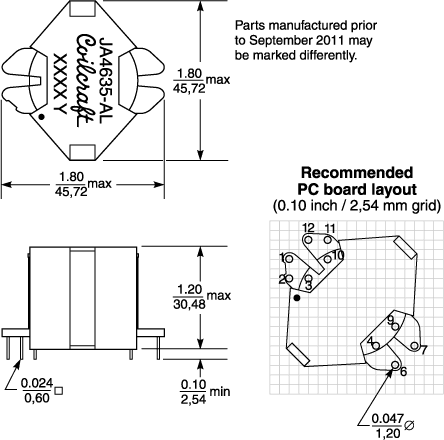

물리적 특성

일반 사양

코어 소재:

Ferrite

중량:

94.3 g

패키지:

20 per tray

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
