Datasheet 3D Model

NA6223 Flyback Transformer

for Texas Instruments TSP23750

Developed for TI TPS23753A PoE PD controller (PMP8896 and PMP9175 reference designs)

지금 구매:

개수	단품 가격
1	$3.47
175	$2.99
700	$2.59
1400	$2.01
2800	$1.74
5000	$1.59

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

Texas Instruments TPS23753와(과) 호환

입력 전압	출력 1		전력	FSW
입력 전압	Sec	Bias	전력	FSW
36 V — 57 V	5 V , 2 A	10 V , 0.02 A	10 W	100 kHz

사양

Electrical specifications at 25°C.

부품 번호 2 (Hover for schematics)	인덕턴스 @ 0A (µH) 3 (허용 오차: ±10%)	인덕턴스 최소 @ 1.1 A (µH) 4	DCR max 5				누설 인덕턴스 최대 (µH) 6	권수비 7	절연 전압 (Vrms) 8	회로도
부품 번호 2 (Hover for schematics)	인덕턴스 @ 0A (µH) 3 (허용 오차: ±10%)	인덕턴스 최소 @ 1.1 A (µH) 4	Pri (Ω)	Sec (mΩ)	Sync (mΩ)	Bias (mΩ)	누설 인덕턴스 최대 (µH) 6	Pri : Sec : Sync : Bias	절연 전압 (Vrms) 8	회로도
NA6223-ALD	180	162	0.330	13.500	190.000	1230.000	1.2	1 : 0.167 : 0.167 : 0.361	1500	na6223s

메모

Output for the secondary is between pins 7 and 10. Bias winding output is 10 V, 20 mA. Sync winding output is a 5 V Sync FET gate drive signal.
When ordering, please specify packaging code: e.g. NA6223-ALD
Inductance is for the primary, measured at 100 kHz, 0.1 Vrms, 0 Adc.
Ipk is the peak primary current drawn at minimum input voltage.
DCR for the primary is from pin 1 to pin 2, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance if for the primary and is measured with all other windings shorted.
Turns ratio is with the primary windings connected in series.
1500 Vrms, one minute isolation from the primary and bias windings to the secondary.

종단 처리:

RoHS-compliant 260°C compatible. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations.

패키지:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C

보관 온도 범위:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

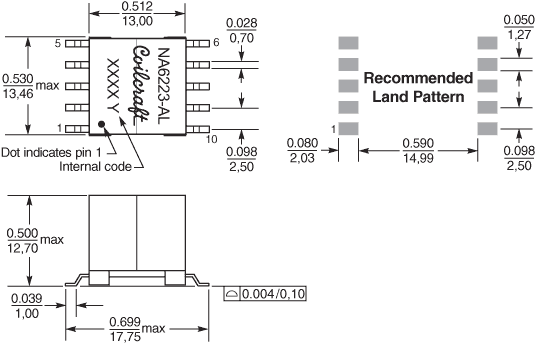

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	38,4	32,4	32	28	4	2	12,93	0,6

일반 사양

코어 소재:

Ferrite

중량:

6.2 g

패키지:

175 per 13″ reel Plastic tape: 32 mm wide, 0.6 mm thick, 28 mm pocket spacing, 12.93 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
