3D Model Datasheet

A0009-AL Surface Mount

Flyback Transformer

For flyback regulator applications using the Texas Instruments LM5000 Regulator
Recommended and approved by Texas Instruments

지금 구매:

개수	단품 가격
1	$4.79
150	$4.11
300	$3.56
1200	$3.13
2400	$2.67
5000	$2.43

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

Texas Instruments LM5000와(과) 호환

입력 전압	출력	전력	FSW
18 V — 55 V	3.3 V , 3 A	6.6 W	100 kHz

사양

Electrical specifications at 25°C.

부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±20%)	DCR max (Ω) 3			누설 인덕턴스 최대 (µH) 4	권수비	절연 전압 (Vrms) 5
부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±20%)	In	Out	Aux	누설 인덕턴스 최대 (µH) 4	In : Out : Aux	절연 전압 (Vrms) 5
A0009-AL_	100	0.15	0.01	0.15	1.0	1 : 0.33 : 1	500

메모

When ordering, please specify packaging code: e.g. A0009-ALD
Inductance measured across input and auxiliary windings at 100 kHz, 0.1 Vrms, 0 Adc for one minute.
DCR measured at 25°C. For other operating temperatures,use this DCR at Temperature calculator.
Leakage inductance measured at 100 kHz, 0.1 Vrms from pins 1 to 4 with all other pins shorted.
500 Vrms, one minute isolation between windings. Isolation measured from pin 1 to pins 5 and 6; from 2 to 5 and 6; and from pins 1, 2, 5 and 6 to the core for one minute.

종단 처리:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

패키지:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (150 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +85°C

보관 온도 범위:

Component: –40°C to +85°C
Tape and reel packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

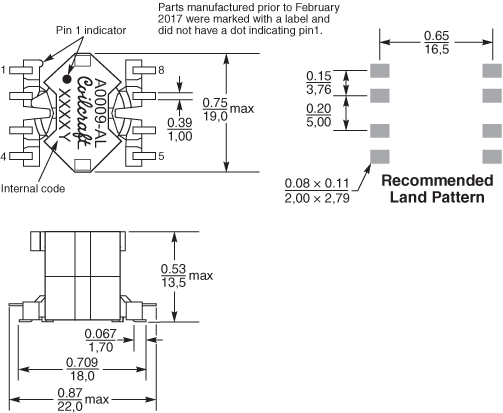

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
150	330	100	13	50,4	44,4	44	28	4	2	13,8	0,5

일반 사양

코어 소재:

Ferrite

중량:

7.86 g

패키지:

150 per 13″ reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 13.8 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
