Datasheet 3D Model

GA3291-AL Forward Converter Transformer

for Akros AS1130 PoE Controller

Developed for Akros Silicon AS1130, 30 W PoE Controller
Designed for forward topology operating at 350 kHz
Input filter inductor: DO1608C-103
Output filter inductor: MSS1278-683

지금 구매:

개수	단품 가격
1	$3.63
175	$3.23
700	$2.68
1400	$2.26
2800	$2.02
5000	$1.85

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

Akros Silicon AS1130와(과) 호환

입력 전압	출력		전력	FSW
입력 전압	Sec	Aux	전력	FSW
36 V — 57 V	12 V , 2.5 A	16 V , 0.02 A	30 W	300 kHz

사양

Electrical specifications at 25°C.

부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±25%)	DCR max 3		누설 인덕턴스 최대 (µH) 4	권수비 5	절연 전압 (Vrms) 6
부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±25%)	Pri (Ω)	Sec (mΩ)	누설 인덕턴스 최대 (µH) 4	Pri : Sec	절연 전압 (Vrms) 6
GA3291-ALD	203	0.065	31.000	0.215	1 : 0.923	1500

메모

When ordering, please specify a packaging code: GA3291-ALD.
Inductance is measured at 300 kHz, 0.6 Vrms, 0 Adc.
DCR for the primary is measured from pin 1 to pin 3.
Leakage inductance is for the primary (pin 1 to pin 3) and is measured with the secondary shorted.
Turns ratio is based on the entire the primary winding (pin 1 to pin 3).
1500 Vrms isolation from primary to secondary.

종단 처리:

RoHS-compliant. 260°C compatible. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

패키지:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

Primary is pin 1 to pin 3.
Terminal 2 is for internal connection only.
Do not connect terminal 2 to ground or any circuitry.

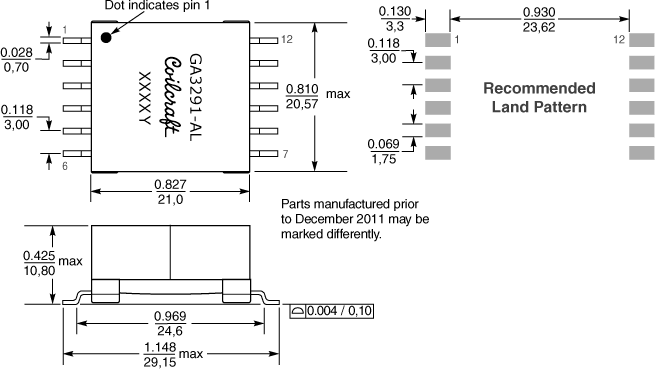

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	28	4	2	11,9	0,4

일반 사양

코어 소재:

Ferrite

중량:

10.7 g

패키지:

175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
