NA5743-AL Flyback Transformer

for Linear Technology LT8584

RoHS 준수 AEC-Q flag
  • Developed for Linear Technology LT8584 Isolated Monolithic Active Cell Balancer
  • Input: 2 – 8 V; Outputs: 10 – 35 V, 30 – 80 V and 100 – 400 V
  • AEC-Q200 Grade 1 (−40°C to +125°C)
지금 구매:
개수 단품 가격
1 $3.10
200 $3.15
600 $1.90
1200 $1.62
2400 $1.40

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

통상적인 적용 분야

ADIPowerbyLinear LT8584와(과) 호환

입력 전압 출력 전력 FSW
2 V 8 V 80 V 12 W 150 kHz

사양

Electrical specifications at 25°C.

부품 번호 1
(Hover for schematics)
인덕턴스
@ 0A (µH)
(허용 오차: ±10%)
인덕턴스
최소 @   7 A (µH) 2
DCR max (Ω) 3 누설
인덕턴스
최대 (µH) 4
권수비 5 절연
전압 (Vrms) 6
Pri Sec Pri : Sec
NA5743-AL_ 4.0 3.6 0.012 0.500 0.116 1 : 4 1500
메모
  1. When ordering, please specify packaging code: e.g. NA6252-ALD
  2. Peak primary current drawn at minimum input voltage.
  3. DCR for the primary is with the windings connected in parallel, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. Inductance is for the primary, measured at 150 kHz, 0.1 Vrms, 0 Ad.
  5. Turns ratios are with the primary windings connected in parallel.
  6. 1500 Vrms, one minute isolation from primary to secondary windings.

종단 처리:

  • RoHS-compliant. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

패키지:

  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per full reel).
  • B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter D instead.
환경
환경:
RoHS 준수
주변 온도 범위:
–40°C to +125°C
보관 온도 범위:
e Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
최고 부품 온도:
+125°C (ambient + temp rise)
고장 비율(FIT) / 평균 고장률(MTBF):

회로도



Primary windings to be connected
in parallel on the PC board

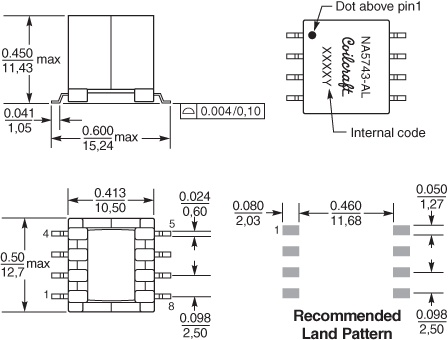

물리적 특성




테이프 및 릴 사양



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_c-(1).gif
200 330 100 13 38,4 32,4 32 24 4 2 11,2 0,5

일반 사양

코어 소재:
Ferrite
중량:
3.9 – 4.2 g
패키지:
200 per 13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 11.2 mm pocket depth

납땜/세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
납땜 열 내성:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash.  More info.
