ZD2024-AE

Name: ZD2024-AED
Brand: Coilcraft
SKU: ZD2024-AED
Price: 2.29 USD
Availability: InStock

ZD2024-AED

부품에 대한 추가 정보 및 사양.

시리즈로 이동

지금 구매:

개수	단품 가격
1	$7.73
100	$6.34
250	$4.78
500	$2.91
1000	$2.29

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

E = Tin-silver over tin over nickel over phos bronze

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

STMicroelectronics STEVAL-250GANCB와(과) 호환

입력 전압	출력	전력
5 V — 12 V	12 V , 0.03 A	3 W

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±10%)	Isat (A) 2	DCR max					누설 인덕턴스 최대 (µH) 3	권수비	절연 전압 (Vrms) 4
부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±10%)	Isat (A) 2	Pri (Ω)	Sec1 (Ω)	Sec2 (Ω)	Sec3 (Ω)	Sec4 (Ω)	누설 인덕턴스 최대 (µH) 3	Pri : Sec1 : Sec2 : Sec3 : Sec4	절연 전압 (Vrms) 4
ZD2024-AED	40.0	3.8	0.135	1.95	1.95	1.95	2.4	0.32	1 : 2.5 : 2.5 : 2.5 : 2.5	2000

메모

Inductance is for the primary, measured at 500 kHz, 0.1 Vrms, 0 Adc.
DC current that causes the primary inductance to drop 30% from its value without current.
Leakage inductance is for the primary with the secondary windings shorted.
2000 Vrms, one minute isolation (hipot) between primary and secondary windings.

종단 처리:

RoHS-compliant, halogen free. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

패키지:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+165°C (Ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

L vs Current

회로도

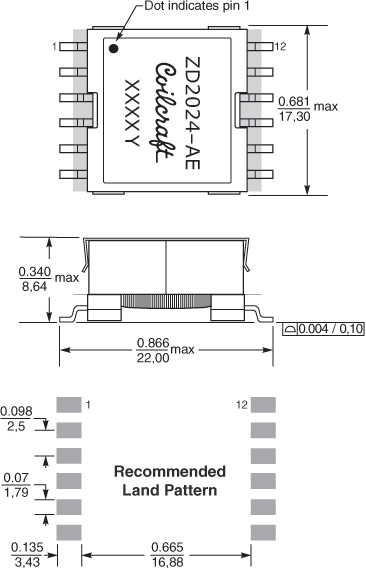

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	28	4	2	9,3	0,4

일반 사양

코어 소재:

Ferrite

중량:

5.43 – 5.63 g

패키지:

200/13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.3 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
