Datasheet 3D Model

RA7040-AL Forward Mode

Planar Transformer for TI UCC2897 (PMP9720)

Developed for TI UCC2897 Current Mode Active Clamp PWM Controller (PMP9720 reference design)
Designed for forward topology operating at 200 kHz with an input range of 48 – 60 V.

立即购买:

索取样品:

典型应用

与Texas Instruments UCC2897一起使用

输入电压	输出 1		功率
输入电压	Sec	Aux	功率
48 V — 60 V	12 V , 13 A	12 V	150 W

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 2 (公差: ±20%)	DCR max 3			最大漏电感 (µH) 4	匝数比	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6
零件号 (Hover for schematics)	0A时的电感 (µH) 2 (公差: ±20%)	Pri (mΩ)	Sec (mΩ)	Aux (mΩ)	最大漏电感 (µH) 4	Pri : Sec : Aux	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6
RA7040-AL	50	10.75	4.25	61.10	0.55	1 : 0.5 : 0.5	100	1500

注释

Output is of the secondary winding frmo pins 11 – 8. Output of the aux winding is 12 V.
Inductance is for the primary, measured on Agilent/HP 4284A at 200 kHz, 0.5 Vrms, 0 Adc with primary windings connected in parallel.
DCR for the primary is measured with the windings connected in parallel. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage Inductance is for the primary, measured at 200 kHz, 0.5 Vrms, 0 Adc with primary windings connected in parallel and all secondary pins shorted.
Volt-time product is based on primary windings connected in parallel.
1500 Vrms, one minute isolation hipot) from primary to secondary.

端子:

RoHS-compliant 260°C compatible. Matte tin over nickel over brass.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C
Tray packaging: –40°C to +80°C

最高元件温度:

+165°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

Primary windings to be connected in parallel on the PC board.

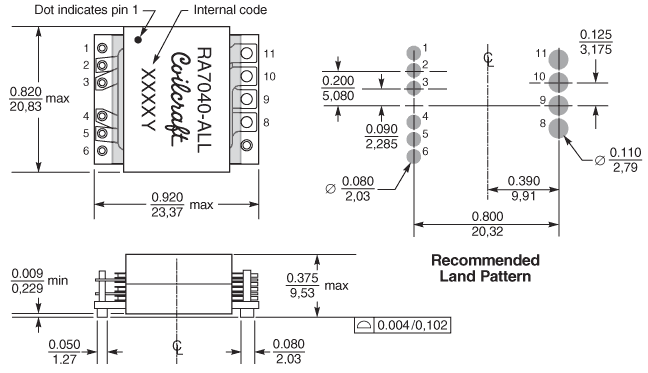

物理特性

一般规格

核心材料:

Ferrite

重量:

12.7 g

包装:

36 per tray

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
