PA6605-AL Planar Transformer

for TI LM5122 Synchronous Flyback Controller

符合RoHS
  • Developed for use with TI LM5122 Synchronous Flyback Controller with Multiple Phase Capability.
  • 96% efficiency
立即购买:
计数 单价
1 $16.95
50 $13.57
100 $11.80
250 $10.40
500 $6.24
1000 $4.85

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

典型应用

与Texas Instruments LM5122一起使用

输入电压 输出 功率 Fsw
9 V 60 V 12 V , 5 A 60 W 250 kHz

规格

Electrical specifications at 25°C.

零件号 0A时的
电感 (µH) 1
(公差: ±10%)
最小电感
  12.5 A (µH)
DCR max (mΩ) 2 最大
漏电感
(µH) 3
匝数比 隔离
电压 (Vrms) 4
Pri Sec Pri : Sec
PA6605-AL 10.0 9.0 4.7 4.7 0.13 1 : 1 1500
注释
  1. Inductance is for the primary, measured at 250 kHz, 0.1 Vrms.
  2. DCR is for each winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  3. Leakage inductance is for the primary and is measured at 250 kHz, 0.1 Vrms with secondary winding shorted.
  4. 1500 Vrms, one minute isolation from primary to secondary winding.

端子:

  • RoHS-compliant. Tin-silver (96.5/3.5) over tin over copper over steel terminations
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C
储存温度范围:
Component: –40°C to +125°C.
Tray packaging: –40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

原理图

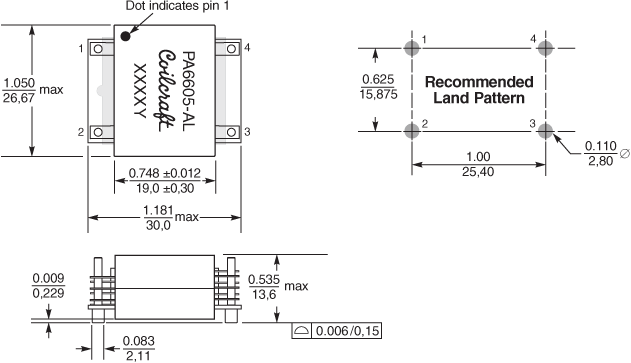

物理特性



一般规格

核心材料:
Ferrite
重量:
24g
包装:
25 parts per tray

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
