Datasheet 3D Model

NA5738-DL SMT Planar Transformer

for Texas Instruments UCC2897

Developed for TI UCC2897 Active Clamp (PMP7376 Reference Design)

立即购买:

计数	单价
1	$14.98
100	$15.71
250	$11.80
500	$7.08
1000	$5.51

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.

索取样品:

典型应用

与Texas Instruments UCC2897一起使用

输入电压	输出 1		功率
输入电压	Sec	Aux	功率
52 V — 60 V	12 V , 22 A	12 V	264 W

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 2 (公差: ±20%)	DCR max 3			最大漏电感 (µH) 4	匝数比	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6
零件号 (Hover for schematics)	0A时的电感 (µH) 2 (公差: ±20%)	Pri (mΩ)	Sec (mΩ)	Aux (mΩ)	最大漏电感 (µH) 4	Pri : Sec : Aux	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6
NA5738-DL	100	4.8	1.7	18.0	0.18	1 : 0.4 : 0.4	94.5	1500

注释

Output of the aux winding is 12 V.
Inductance is for the primary, measured on Agilent/HP 4284A at 200 kHz, 0.5 Vrms, 0 Adc.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage Inductance is for the primary, measured at 100 kHz, 0.1 Vrms, 0 Adc with secondary pins shorted.
Volt-time product is for the primary, between pin 2 and 3.
1500 Vrms, one minute isolation (hipot) from primary to secondary.

端子:

RoHS-compliant 260°C compatible. Matte tin over nickel over brass.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +155°C
Tray packaging: –40°C to +80°C

最高元件温度:

+155°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

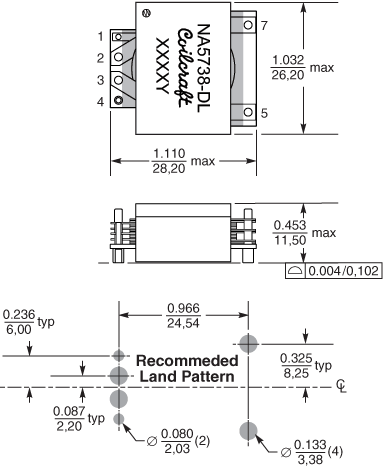

物理特性

一般规格

核心材料:

Ferrite

重量:

22.0 g

包装:

36 per tray

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
