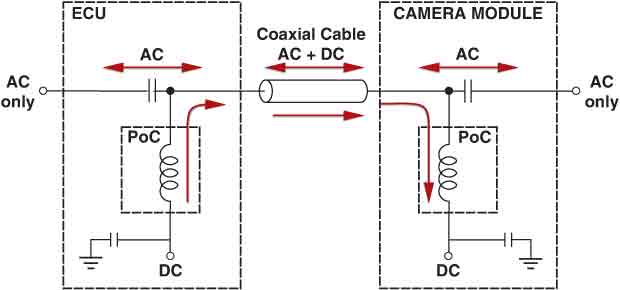

Power Injection Inductors for Automotive LVDS — Power over Coax (PoC)

Solution
Minimum Frequency (MHz)
Maximum Frequency (MHz)
Solution Max DCR (Ω)
Max Height (mm)
Solution Max Area (mm²)
Solution Current 85°C (A)
Solution Current 105°C (A)
Solution Current 125°C (A)
IC Ref Design
Product
SMD-POC-025 1 3000 2.1 4.15 25.35 - - 0.28 C-3L-280
GMSL 1/2
PFL1005-561
1210POC-223
LPS4040-154
SMD-POC-005 8 3000 1.4 3.0 9.54 - - 0.30 C-2L-300
GMSL 2
PFL1005-561
1210POC-223
SMD-POC-029 8 3000 1.0 3.0 10.74 - 0.50 0.40 C-2L-500
GMSL 2
PFL1609-561
1210POC-223
SMD-POC-006 8 3000 0.60 3.22 54.91 1.0 0.80 0.60 C-4L-1000
GMSL 2
PFL1609-471  x2
1210POC-682
MSS6132T-223
SMD-POC-040 8 3000 0.33 4.1 95.7 2.0 - - C-6L-2000
GMSL 2
 PFL1609-47N x3
1812PS-222
MSS6132T-682
XAL4040-153
SMD-POC-001 1 4200 2.2 2.36 21.73 0.30 0.30 0.30  PFL1005-181 x2
1205POC-682
LPS4018-104
SMD-POC-002 1 4200 0.97 3.12 46.26 - - 0.30 PFL1005-101 x2
1210POC-682
MSS5131-104
SMD-POC-018 1 4200 0.93 4.1 72.3 - - 0.60 PFL1005-181
PFL1609-681
1210POC-682
MSS7341T-104
SMD-POC-003 1 4200 0.53 5.1 141.3 0.90 0.90 0.80 0402DF-560
PFL2010-471

1812PS-103
MSS1048T-104
SMD-POC-004 1 4200 0.53 5.1 184.29 - - 1.2 0402DF-200 x2
PFL2010-471
1812PS-562
MSS6132T-223
MSS1048T-104
SMD-POC-031 8 3000 1.5 3.0 12.66 - - 0.30 PFL1609-561
1210POC-223
PFL1609-222
SMD-POC-032 8 3000 2.0 3.0 15.22 - - 0.30 PFL1609-561
1210POC-223

1205POC-103
SMD-POC-035 8 3000 0.61 3.0 26.55 - - 0.60 PFL1609-561
1210POC-682

ZA9569-223
SMD-POC-024 8 3000 0.65 2.8 - - - 0.50 PFL1609-471  x2
1210POC-682
LPS4040-223
SMD-POC-008 8 3000 0.45 3.81 76.69 - - 0.10 0603AF-121
PFL2010-681
1812PS-472
MSS6132T-223
SMD-POC-041 8 3000 0.48 5.0 50.0 - - 1.0 PFL2015-561
1210POC-222
LPS3015-332
MSS5050T-223
SMD-POC-033 1 2000 1.5 4.0 20.72 - - - 1205POC-103
ZA9569-104
SMD-POC-037 1 2000 0.91 4.0 20.29 - - - 1205POC-682
ZA9569-104
SMD-POC-030 1 3000 2.3 5.05 24.14 - - 0.28 PFL1609-561
LPS4040-154
1205POC-103
PFL1609-222
SMD-POC-022 8 3000 1.9 4.0 24.14 - - 0.30 PFL1609-102 x2
1205POC-103
ZA9569-104
SMD-POC-069 25 4200 0.74 2.36 6.41 0.60 0.50 0.45 PFL1609-102
1205POC-682


Request a Sample Board or Custom Solution

Interested in sampling our boards or you can’t find a solution here that fits your specific needs? Please fill out the following webform and one of our technical experts will provide an optimized solution for your application.
