3D Model Datasheet

DA2025-AL Planar Transformer

for Texas Instruments LM5035

Specifically developed for use with the TI LM5035 PWM Controller
Listed on TI AN-1435 Application Note
Low profile, high efficiency planar transformer
Designed for 100 Watt applications
Handles current to 30 A

立即购买:

计数	单价
1	$8.92
1000	$7.65
5000	$6.02

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

典型应用

与Texas Instruments LM5035一起使用

输入电压	输出	功率	Fsw
36 V — 75 V	3.3 V , 30 A	100 W	200 kHz

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	最小电感 (µH) 2	DCR max (mΩ) 3			最大漏电感 (nH) 4	匝数比	隔离电压 (Vrms) 5
零件号 1 (Hover for schematics)	最小电感 (µH) 2	Pri	Sec	Aux	最大漏电感 (nH) 4	Pri : Sec : Aux	隔离电压 (Vrms) 5
DA2025-AL_	120.0	50.0	2.0	250	250	1 : 0.5 : 0.625	1500

注释

When ordering, please specify packaging code: e.g. DA2025-ALD
Inductance measured on an Agilent/HP 4284 between pins 2 and 4 at 200 kHz, 0.1 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance measured between pins 2 and 4 at 200 kHz, 0.1 Vrms, 0 Adc with secondary pins shorted.
1500 Vdc isolation, primary to secondary.

端子:

RoHS-compliant. 260°C compatible. Matte tin over nickel over brass terminations.

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

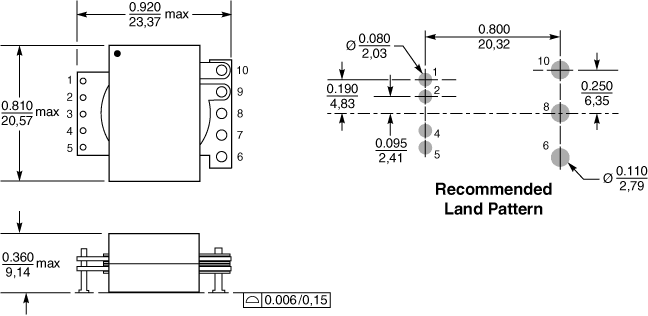

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	32	4	2	9,35	0,37

一般规格

重量:

12.5 g

包装:

200/13″ reel 44 mm tape width

焊接

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。
