PL300 Series

SMT Planar Transformers

符合RoHS AEC-Q flag
  • Rated for 300 Watts between 200 kHz and 700 kHz with a nominal 48 V input.
  • High efficiency; excellent DCR; very low leakage inductance
  • AEC-Q200 Grade 1 (−40°C to +125°C)
  • 1500 Vrms, one minute primary to secondary isolation.
  • Provides 0.009 inch (0.229 mm) clearance above the seating plane
  • Can be special ordered with an optional auxiliary winding
  • The smaller PL160 Series is rated at 160 Watts
  • RoHS-compliant. 260°C compatible. Matte tin over nickel over brass terminations
  • Two samples of each PL300 and PL160 parts are available in Coilcraft Designer's Kit C460
立即购买:
计数 单价
1 $10.39
100 $8.30
250 $7.22
500 $6.28

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C460 10 (2 of each) $60.00

规格

Electrical specifications at 25°C.

零件号 1 功率 (W) 输入电压 (V) 最小
电感 (µH) 2
DCR max (mΩ) 3 最大
漏电感
(µH) 4
匝数比 电压-时间
乘积 (V-µs) 5
隔离
电压 (Vrms)
Pri1 Pri2 Sec Pri1 : Pri2 : Sec
PL300-100L 300 36 72 287 7.2 7.2 4.2 0.25 1 : 1 : 1 206 1500
PL300-101L 300 36 72 448 9.0 9.0 4.2 0.35 1 : 1 : 0.8 258 1500
PL300-102L 300 36 72 635 10.6 10.6 4.2 0.50 1 : 1 : 0.67 310 1500
PL300-103L 300 36 72 864 12.3 12.3 4.2 0.75 1 : 1 : 0.57 361 1500
PL300-104L 300 36 72 1075 13.8 13.8 4.2 1.0 1 : 1 : 0.5 413 1500
注释
  1. To order a transformer with an optional auxiliary winding, add an “X” and the turn count after the PL300, e.g. PL300X3-100LB.
    Turn counts of 2, 3, 4, 5, 7 and 9 are available for the auxiliary winding.
    Transformers with auxiliary windings are not stocked. Call for lead time.
  2. Inductance measured on an Agilent/HP 4284 at 200 kHz, 0.5 Vrms, 0 Adc between pins 2 and 5 with pins 3 and 4 connected.
  3. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator. DCR for secondary is measured between pins 7 and 11.
  4. Leakage inductance measured at 200 kHz, 0.5 Vrms, 0 Adc between pins 2 and 5, with pins 3 and 4 connected, and with all secondary pins shorted
  5. Volt-time product is based on primary windings connected in series.

端子:

  • Matte tin over nickel over brass.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C
储存温度范围:
Component: –40°C to +125°C
Tray packaging: –40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

原理图

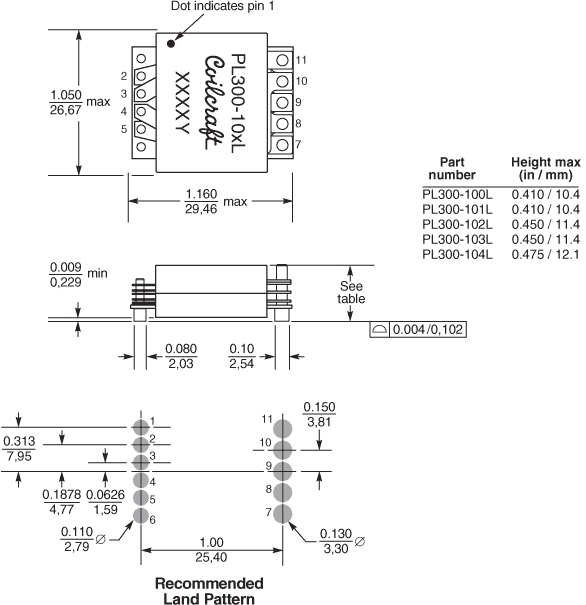

物理特性


一般规格

核心材料:
Ferrite
重量:
22.5 – 26.0 g
包装:
25 per tray

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested with pure water or alcohol only. More info.
