Datasheet 3D Model

B0860-CL Planar Transformer

for Maxim MAX5069A

Developed for Maxim MAX5069A PWM Controller
For push-pull, half-bridge and full-bridge topologies
Ideal for use in high-current power supply applications
Designed using Coilcraft Planar Prototyping Kit C356.

立即购买:

计数	单价
1	$11.96
1000	$9.98
5000	$7.86

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

典型应用

与Maxim MAX5069A一起使用

输入电压	输出	功率	Fsw
36 V — 72 V	12 V , 15 A	180 W	250 kHz

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	最小电感 (µH) 2	DCR max (mΩ) 3			最大漏电感 (µH) 4	匝数比 5	隔离电压 (Vrms) 6
零件号 1 (Hover for schematics)	最小电感 (µH) 2	Pri	Sec	Aux	最大漏电感 (µH) 4	Pri : Sec : Aux	隔离电压 (Vrms) 6
B0860-CL_	187.0	38.0	4.0	120.0	0.25	1 : 0.4 : 0.3	1500

注释

When ordering, please specify packaging code: e.g. B0860-CLD
Inductance measured on an Agilent/HP 4284 between pins 2 and 4 at 250 kHz, 0.1 Vrms, 0 Adc
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance measure between pins 2 and 4 at 250 kHz, 0.1 Vrms, 0 Adc with pins 6, 8 and 10 shorted.
Turns ratio is with the primary windings and the secondary windings connected in series.
1500 Vdc isolation - primary to secondary windings.

端子:

RoHS-compliant. 260°C compatible. Matte tin over nickel over brass terminations.

包装:

D = 13" machine-ready reel
EIA 481 embossed plastic tape (200 parts per full reel).
B = Less than full reel
In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter D instead.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

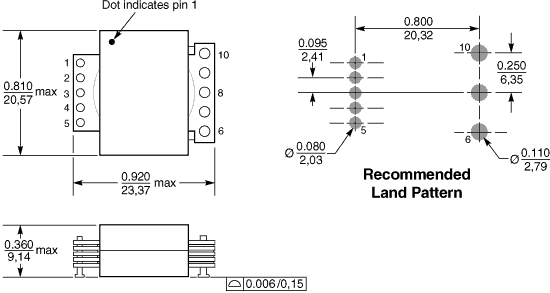

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	32	4	2	9,4	0,37

一般规格

重量:

11.8 g

焊接/清洗

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
