HA3648-BL Planar Transformer

for Texas Instruments LM5037

Specifically developed for use with the TI LM5037 Dual Mode PWM Controller
Designed as half bridge in forward topology
Auxiliary winding provides 10 V to the chipset

立即购买:

计数	单价
1	$5.85
1000	$5.61
5000	$5.14

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

典型应用

与Texas Instruments LM5037一起使用

输入电压	输出		功率	Fsw
输入电压	Sec	Aux	功率	Fsw
36 V — 78 V	5 V , 10 A	10 V	50 W	250 kHz

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	最小电感 (µH) 2	DCR max 3				最大漏电感 (µH) 4	匝数比	隔离电压 (Vdc) 5
零件号 1 (Hover for schematics)	最小电感 (µH) 2	Pri (mΩ)	Sec1 (mΩ)	Sec2 (mΩ)	Aux (mΩ)	最大漏电感 (µH) 4	Pri : Sec1 : Sec2 : Aux	隔离电压 (Vdc) 5
HA3648-BLD	30.0	6.0	2.0	2.0	160	0.040	1 : 0.5 : 0.5 : 1	1500

注释

When ordering, please specify a packaging code: HA3648-BLD
Inductance measured on an Agilent/HP 4284 between pins 3 and 4 at 250 kHz, 0.1 Vrms, 0 Adc.
DCR for the secondary is from pin 6 to pin 10.
Leakage inductance measured between pins 3 and 4 at 250 kHz, 0.1Vrms, 0 Adc with pins 6, 8 and 10 shorted.
1500 Vdc isolation, primary to secondary.

端子:

RoHS-compliant. 260°C compatible. Matte tin over nickel over brass terminations. Other terminations available at additional cost.

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (200 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

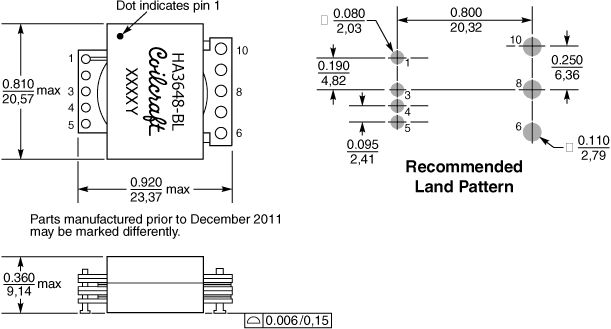

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	32	4	2	>9,35	0,37

一般规格

核心材料:

Ferrite

重量:

11.8 g

包装:

g 200 per 13″reel Plastic tape: 44 mm wide, 0.37 mm thick, 32 mm pocket spacing, 9.35 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Only pure water or alcohol recommended
