3D Model Datasheet

MA5519-AL Planar Transformer

for TI LM5045 based 720 W Power Converter

Designed for Texas Instruments PMP9219 720 Watt Power Converter
Listed as T2 on Texas Instruments BOM-PMP9219

立即购买:

索取样品:

典型应用

与Texas Instruments LM5045一起使用

输入电压	输出	功率	Fsw
36 V — 75 V	12 V , 60 A	720 W	300 kHz

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±30%)	DCR max (mΩ) 2				最大漏电感 (µH) 3	匝数比	隔离电压 (Vrms) 4
零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±30%)	Pri	Sec	Aux1	Aux2	最大漏电感 (µH) 3	Pri : Sec : Aux1 : Aux2	隔离电压 (Vrms) 4
MA5519-AL	190.8	5.0	1.5	178	178	0.13	1 : 0.67 : 0.33 : 0.66	1500

注释

Inductance is measured at 300 kHz, 1.0 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary, measured with the secondary shorted.
1500 Vrms, one minute primary to secondary isolation (Hipot).

端子:

RoHS-compliant. 260°C compatible. Matte tin over nickel over brass terminations.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +125°C

储存温度范围:

Component: −40°C to +125°C
Tray packaging: −40°C to +80°C

最高元件温度:

+150°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

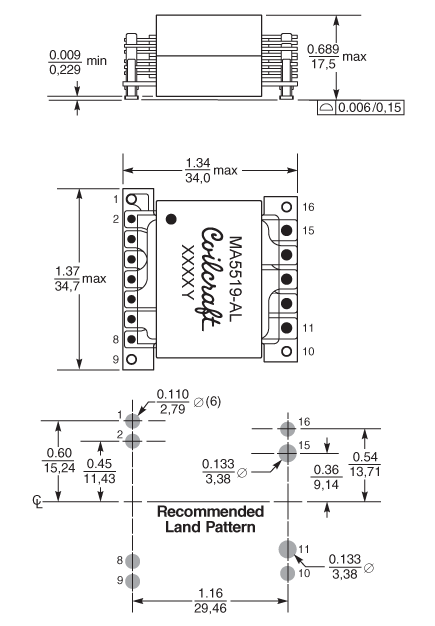

物理特性

一般规格

核心材料:

Ferrite

重量:

53.9 g

包装:

16 per tray

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
