NA5880-AE Coupled Inductor

for use with Fairchild Semiconductor FAN8831

RoHS compliant halogen free
  • Developed for use with Fairchild Semiconductor FAN8831 Sinusoidal Piezoelectric Actuator Driver with Step-Up DC-DC Converter.
  • 1 : 4 turns ratio; output voltages up to 300 V
Buy Now:
Count Unit price
1 $0.76
250 $0.64
500 $0.57
1000 $0.44
2000 $0.39
5000 $0.35

For high volume or non-stock items, request a quote.

. in stock, ready to ship today.
Request a Sample:

Specifications

Electrical specifications at 25°C.

For Flyback Applications

Part number 1 Inductance (µH) 2
(Tolerance: ±20%)
DCR (Ω) 3 Isolation
Voltage (V) 4
Turns Ratio
L1 max L2 max
NA5880-AE_ 3.3 0.31 2.3 300 1 : 4

For SEPIC Applications

Part number 1 Inductance (µH) 2
(Tolerance: ±20%)
DCR max (Ω) 3 SRF typ (MHz) 5 Isat (A) 6
L1 L2
NA5880-AE_ 3.3 0.31 2.3 12.0 1.3
Notes
  1. When ordering, please specify packaging code: e.g. NA5880-AEC
  2. Inductance is for the primary, measured at 50 kHz, 0.1 Vrms, 0 Adc.
  3. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. One minute isolation (hipot) from primary to secondary
  5. SRF measured using an Agilent/HP 4191A or equivalent.
  6. DC current applied to L1, at which the inductance drops 10% from its value without current.

Termination:

  • RoHS-compliant. Matte tin over silver-palladium-platinum-glass frit terminations.

Packaging:

  • C = 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3500 parts per full reel).
Environmental
Environmental:
RoHS compliant , halogen free
Ambient temperature range:
−40°C to +85°C
Storage temperature range:
Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C
Maximum part temperature:
+165°C (ambient + temp rise)
Failures in Time (FIT) / Mean Time Between Failures (MTBF):

Schematics

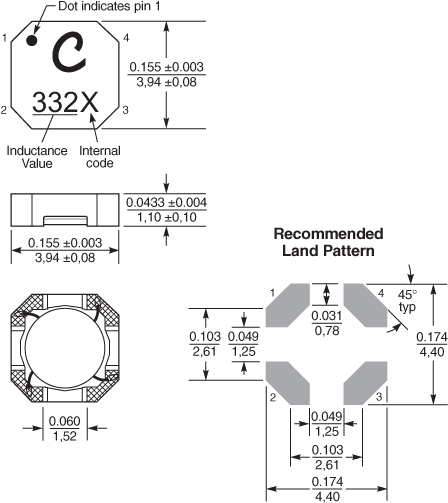

Physical characteristics



Tape and Reel specification

Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_aj.gif
1000 3500* 178/330 60/100 13 18,4 12,4 12 8 4 2 1,32 0,25
* Special order

General specification

Weight:
64 mg
Packaging:
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide, 0.25 mm thick, 8 mm pocket spacing, 1.32 mm pocket depth.
Winding to Winding Isolation:
300 V

Soldering/Washing

Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Resistance to soldering heat:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
Refer to Soldering Coilcraft Components before soldering.
Recommended Pick & Place Nozzle:
OD: 4 mm; ID: ≤ 2 mm
PCB Washing:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
