Power Factor Controller Transformers

for ON Semi MC33261 and MC34261

Designed for use with ON Semiconductor MC33261 and MC34261 power factor controllers
Built using standard materials for lowest cost
Custom transformers available for specific combinations of output power and input voltage

立即购买:

零件号

查找我的元件

索取样品:

零件号

查找我的元件

典型应用

与Motorola MC33261/MC34261一起使用

零件号	输入电压 1
N2880-AL	110 V — 220 V
N2881-AL	110 V

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	最小电感 (µH) 2	Inductance max (µH) 2	DCR max 3		隔离电压 (Vrms)
零件号 (Hover for schematics)	最小电感 (µH) 2	Inductance max (µH) 2	Pri (Ω)	Sec (mΩ)	隔离电压 (Vrms)
N2880-AL	780	960	0.100	17.000	500
N2881-AL	290	350	0.170	19.000	500

注释

N2880-AL: “universal” 110/220 V input voltage
N2880-AL: Tested at 15.75 kHz, 1 Vrms
N2881-AL: Tested at 15.75 kHz, 0.2 Vrms
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.

端子:

RoHS-compliant. Tin-silver over tin over copper terminations.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Packaging trays: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

物理特性

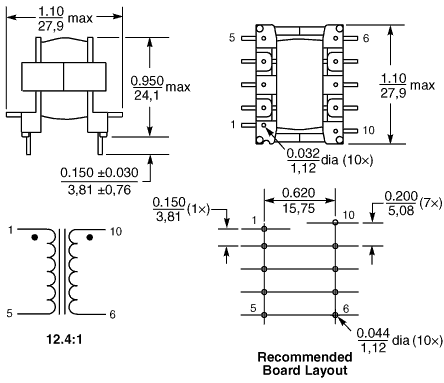

N2880-AL

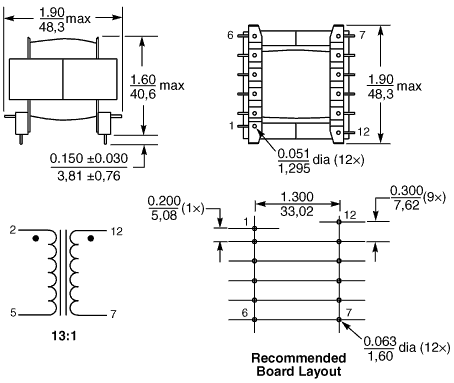

N2881-AL

一般规格

重量:

N2880-AL: 176 g, N2881-AL: 22.2 g

清洗
