PFC Boost Inductor

for ON Semiconductor NCP1606

符合RoHS
  • Developed for ON Semiconductor NCP1606 PFC controller
  • Referenced as LBOOSTin application note AND8282/D
  • Designed to operate in 100 Watt applications
  • Auxiliary winding provides Zero Current Detection (ZCD) information
立即购买:

很抱歉,目前我们的网上商店不提供所选元件。

请点击“请求报价”联系支持部门,以获取自定义报价或了解更多信息。

. 现货,可今天发货.
索取样品:

规格

Electrical specifications at 25°C.

零件号 0A时的
电感 (µH) 1
(公差: ±10%)
Isat (A) 2 DCR max (Ω) 3 匝数比 Irms (A) 5 隔离
电压 (Vrms) 6
Pri Aux Pri : Aux
GA2972-AL 330 4.8 0.30 0.35 1 : 0.125 2.3 500
注释
  1. Inductance measured at 100 kHz, 0.1 V, 0 Adc using an Agilent/HP 4263B impedance analyzer or equivalent.
  2. Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
  3. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF tested on an Agilent/HP 4192A.
  5. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
  6. 500 Vrms isolation winding to winding and from each winding to the core.

端子:

  • RoHS compliant tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.
环境
环境:
符合RoHS
环境温度范围:
−40°C to +85°C with (40°C) Irms current.
储存温度范围:
Component: −40°C to +85°C
Packaging trays: −40°C to +80°C
最高元件温度:
+125°C (Ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

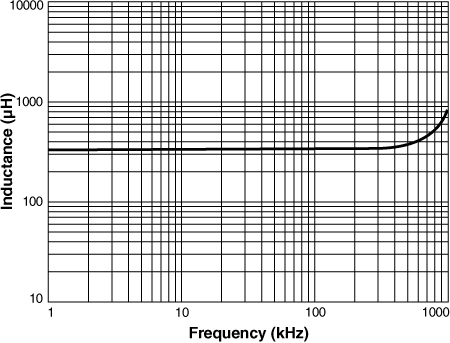

L vs Frequency

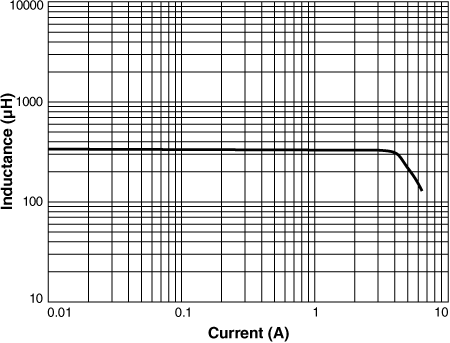

L vs Current

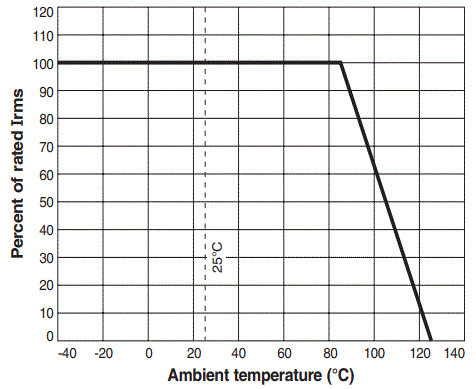

Irms Derating

原理图

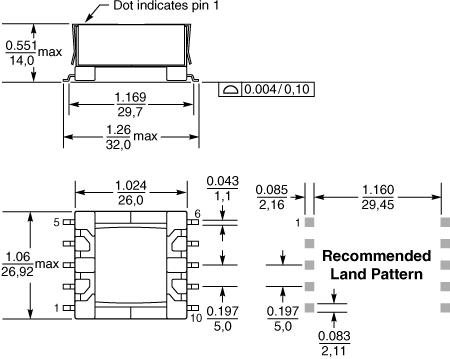

物理特性


一般规格

核心材料:
Ferrite
重量:
27 g
包装:
24 parts per tray

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
