Magnetics for IR Dimming Ballast IC

These products are not available in RoHS-compliant versions. Terminations contain lead. Contact Coilcraft for current status.

Designed for Digital Addressable Lighting Interface (DALI) applications
Z9265-B (L3) is optimized for International Rectifier's IR21592 HVIC ballast controller IC
Z9264-B (L2) is designed for use with the STMicroelectronics PFC L6561D

立即购买:

零件号

查找我的元件

计数	单价
1	$6.37
250	$4.71
500	$3.44
1000	$3.00
5000	$2.35

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C. Measurements are referenced to 50 Ohms.

PFC inductor (L2)

零件号 (Hover for schematics)	0A时的电感 (mH) 1 (公差: ±10%)	DCR max 2		匝数比	隔离电压 (Vrms)
零件号 (Hover for schematics)	0A时的电感 (mH) 1 (公差: ±10%)	Pri (Ω)	Sec (mΩ)	Pri : Sec	隔离电压 (Vrms)
Z9264-B	2.0	1.45	230.00	1 : 0.1	500

Inductor (L3)

零件号 (Hover for schematics)	0A时的电感 (mH) 1 (公差: ±10%)	DCR max (Ω) 2
零件号 (Hover for schematics)	0A时的电感 (mH) 1 (公差: ±10%)	DCR max (Ω) 2
Z9265-BL	2.0	1.57

注释

Inductance tested 50 kHz, 1.0 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.

端子:

RoHS tin-silver over copper.

环境

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: –40°C to +85°C.
Tray packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

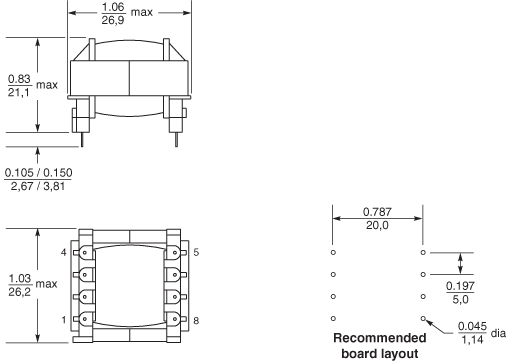

物理特性

一般规格

核心材料:

Ferrite

重量:

28.3 – 28.7 g

包装:

30 parts per tray

清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
