3D Model Datasheet

FA2890-AL PFC Boost Inductor

for ON Semiconductor NCP1606

Developed for ON Semiconductor NCP1606 PFC controller.
Designed to operate in 100 Watt applications.
Auxiliary winding provides Zero Current Detection (ZCD) information.
Referenced as LBOOSTin application note AND8282/D.
Also see JA4224-AL for NCP1607 and NCP1608.

立即购买:

计数	单价
1	$3.66
250	$3.14
500	$2.73
1000	$2.12
2500	$1.83
5000	$1.67

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±15%)	最小电感 3.7 A (µH)	DCR max (Ω) 2		最大漏电感 (µH) 3	匝数比	Irms (A) 4	隔离电压 (Vrms) 5
零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±15%)	最小电感 3.7 A (µH)	Pri	Aux	最大漏电感 (µH) 3	Pri : Aux	Irms (A) 4	隔离电压 (Vrms) 5
FA2890-AL	400	340	0.270	0.345	50	1 : 0.1	2.2	1000

注释

Inductance measured at 100 kHz, 0.1 V, 0 Adc using an Agilent/HP 4263B impedance analyzer or equivalent.
DCR measured on Cambridge Technology micro-ohmmeter. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary and measured with pins 4 and 8 shorted.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
1000 Vrms isolation winding to winding and from each winding to the core.

端子:

RoHS compliant tin-silver over tin over copper over copper-steel.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with Irms current, +85°C to +125°C with derated current

储存温度范围:

Component: –40°C to +85°C.
Tray packaging: –40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

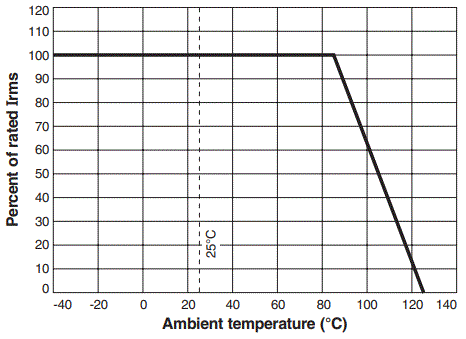

Irms Derating

原理图

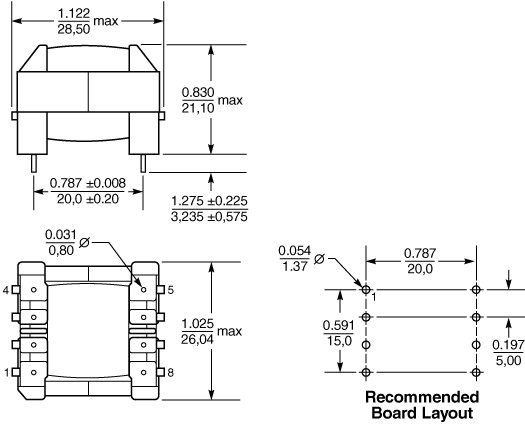

物理特性

一般规格

核心材料:

Ferrite

重量:

27.2 g

包装:

36 parts per tray

清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
