3D Model Datasheet

JA4224 PFC Boost Inductor

for ON NCP1607 and NCP1608

Developed for ON Semiconductor NCP1606 / 7 / 8 PFC controllers.
Replaces FA2890-CL boost inductor
Designed to operate in 100 Watt applications.
Auxiliary winding provides Zero Current Detection (ZCD) information

立即购买:

计数	单价
1	$7.80
240	$6.26
480	$3.76
1200	$2.92
2400	$2.52
4800	$2.31

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	最小电感 4 A (µH)	DCR max (Ω) 2		最大漏电感 (µH) 3	匝数比	Irms (A) 4	隔离电压 (Vrms) 5
零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	最小电感 4 A (µH)	Pri	Aux	最大漏电感 (µH) 3	Pri : Aux	Irms (A) 4	隔离电压 (Vrms) 5
JA4224-AL	400	380	0.29	0.38	115	1 : 0.1	2.8	1000

注释

Inductance measured at 100 kHz, 0.1 V, 0 Adc using an Agilent/HP 4263B impedance analyzer or equivalent.
DCR measured on Cambridge Technology micro-ohmmeter at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary and measured with pins 6 and 12 shorted.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
1000 Vrms isolation winding to winding and from each winding to the core.

端子:

RoHS compliant tin-silver over tin over copper over copper-steel.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with Irms current, +85°C to +125°C with derated current

储存温度范围:

Component: –40°C to +85°C.
Tray packaging: –40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

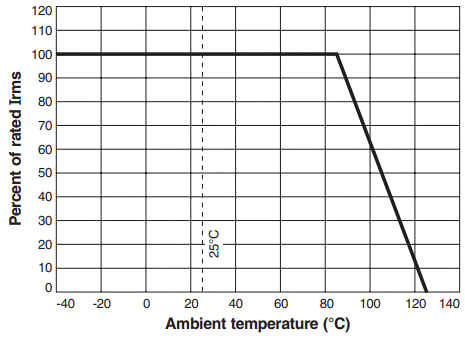

Irms Derating

原理图

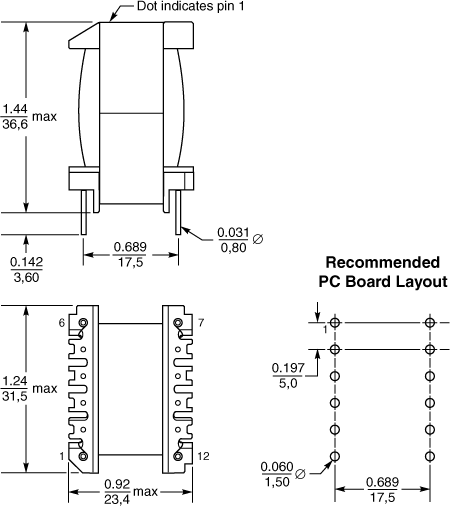

物理特性

一般规格

核心材料:

Ferrite

重量:

45.6 g

包装:

120 parts per tray

清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
