3D Model Datasheet

EB0057

符合RoHS
This power factor correction choke is designed specifically for the STMicroelectronics L6562 PFC controller. It is intended for use in IEC61000-3-2 compliant switch mode power supplies used in televisions, desktop PCs and high-end ac-dc adapters/chargers.

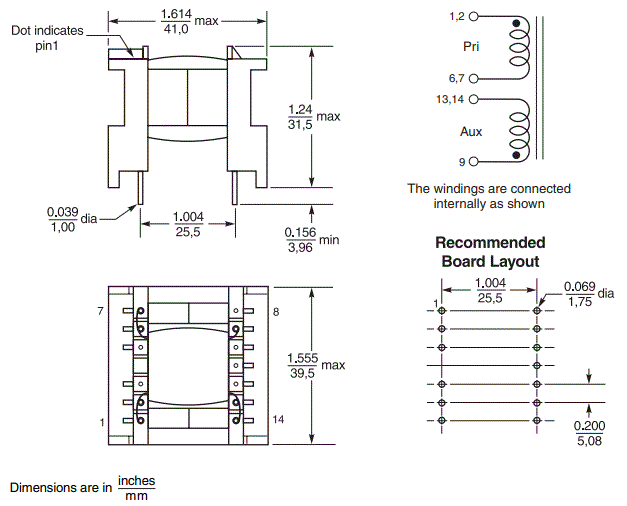

The EB0057-DL is the RoHS-compliant version of the EB0057-C. It is electrically identical and fits the recommended PC board layout.

Coilcraft can design custom transformers with voltage, inductance and DCR values to meet your specific requirements. Contact Coilcraft for more information or for free evaluation samples.

立即购买:
查找我的元件
计数 单价
1 $12.18
250 $10.44
500 $9.07
1000 $7.89
2500 $6.77
5000 $6.21

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.
索取样品:
查找我的元件

规格

Electrical specifications at 25°C.

零件号
(Hover for schematics)
电感 (µH) 1
(公差: ±10%) 		Isat (A) 2 DCR max (Ω) 匝数比 Irms (A) 3 隔离
电压 (Vrms) 4
Pri : Aux
EB0057-DL 150 10.0 0.09 1 : 0.125 4.0 4800
注释
  1. Inductance measured at 50 kHz, 0.1 Vrms, 0 Adc.
  2. DC current at which the inductance drops 10% (typ) from its value without current
  3. Current that causes a 40°C temperature rise from 25°C ambient.
  4. Isolation measured from pins 1 and 2 to pins 13 and 14 with voltage applied for 2 seconds.

端子:

  • RoHS compliant tin-silver over tin over copper-clad steel. Other terminations available at additional cost.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C
储存温度范围:
Component: –40°C to +85°C.
Tray packaging: –40°C to +80°C
故障率（FIT）/平均故障间隔时间（MTBF）:
See FIT/MTBF Calculations

物理特性


一般规格

核心材料:
Ferrite
重量:
75 g
包装:
50 parts per tray

清洗

湿气敏感度等级（MSL）:
1 (unlimited floor life at <30°C / 85% relative humidity)
PCB清洗:
Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
