TRF Series

Tip and Ring Common Mode Filters

RoHS compliant
These economical filters are designed to help telecommunications equipment engineers meet FCC and CCITT requirements. Available in 1- or 2-line (2- or 4-wire) versions, Coilcraft tip and ring filters provide >20 dB attenuation of common mode noise over the 3 to 300 MHz frequency range.
  • Extremely economical design
  • Available in 1 or 2 line (2 or 4 wire) versions
  • Meet FCC and CCITT requirements
  • Greater than 20 dB common mode noise attenuation over 3 to 300 MHz range
Buy Now:
Count Unit price
1 $5.01
100 $4.01
500 $1.81
1000 $1.41
2500 $1.24
5000 $1.10

For high volume or non-stock items, request a quote.

. in stock, ready to ship today.
Request a Sample:

Specifications

Electrical specifications at 25°C.

Part number Lines Common mode
peak impedance (kΩ)
Cutoff
frequency (MHz) 1
Inductance
min (µH) 2
Irms (mA) DCR max (mΩ) 3 Isolation
Voltage (Vrms) 4
TRF 2000L 1 3.00 @ 97.0 MHz 13.0 20 500 65.0 1500
TRF 4000L 2 2.54 @ 84.0 MHz 18.0 20 500 65.0 1500
Notes
  1. Frequency at which the differential mode attenuation equals 3 dB.
  2. Inductance is per winding.
  3. DCR is per winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  4. For TRF 2000L, isolation (hipot) measured from pins 1,8 to 4,5 for one minute.
    For TRF 4000L, isolation (hipot) measured from pins 1,2,7,8 to pins 3,4,5,6 for one minute.

Termination:

  • Tin-silver over tin over phos bronze.
Environmental
Environmental:
RoHS compliant
Ambient temperature range:
–40°C to +85°C
Storage temperature range:
Component: –40°C to +85°C.
Tray packaging: –40°C to +80°C
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
60 per billion hours / 16,666,667 hours, calculated per Telcordia SR-332

Performance curves

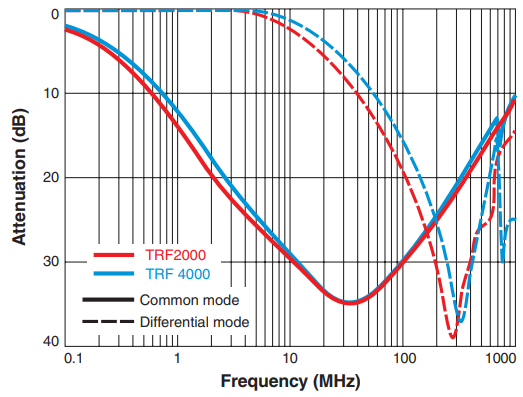

Attenuation (Ref: 50 Ohms)

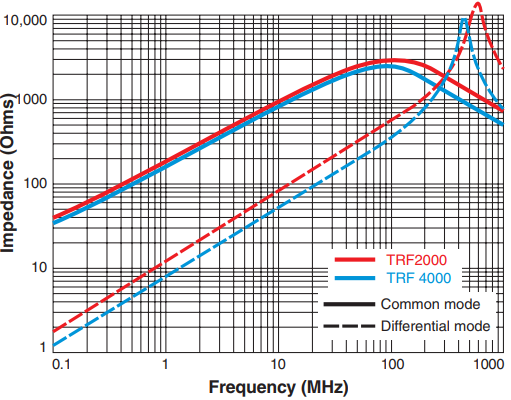

Impedance vs Frequency

Schematics

   TRF 2000L                    TRF 4000L


Physical characteristics

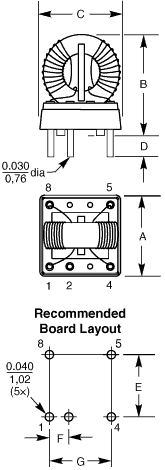

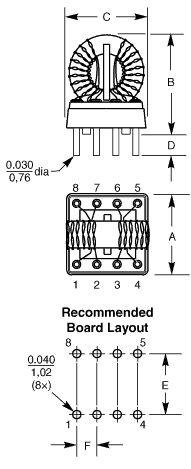

     TRF 2000L                               TRF 4000L

trf2d.gif                                 trf4d.gif

A max B max C max D E F G
0.425 0.550 0.475 0.115 0.300 0.100 0.300 inches
10,80 13,97 12,07 2,92 7,62 2,54 7,62 mm

General specification

Core Material:
Ferrite
Weight:
TRF 2000 = 1.52 g; TRF 4000 = 1.71 g
Packaging:
50 per tube

Washing

Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
PCB Washing:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
