SLV9080 Series

TLVR Shielded Power Inductors

The SLV9080 Series Trans-Inductor Voltage Regulator (TLVR) inductors are designed for use in voltage regulator modules (VRMs) and point-of-load (PoL) converters. With a compact 9 × 6 mm footprint and high power density, these inductors deliver efficient performance in space-constrained designs. This series provides low DCR, tight magnetic coupling, and excellent thermal performance, enabling fast transient response and supporting current ratings up to 120 A. The SLV9080 is well-suited for next-generation CPUs, GPUs, ASICs, and SoCs used in servers, data centers, and various power applications.

Trans-inductor Voltage Regulator (TLVR) inductor
Optimized for fast transient response in multi-phase converter designs
High efficiency with low DCR
High saturation current up to 120 A
AEC-Q200 qualified

Buy Now:

Part number

Find my part

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number 1	Inductance (nH) 2 (Tolerance: ±10%)	DCR ± 10% (mΩ) 3		SRF typ (MHz)	Isat (A) 4			Irms (A) 5
Part number 1	Inductance (nH) 2 (Tolerance: ±10%)	Pri	Sec	SRF typ (MHz)	at 25°C	at 100°C	at 125°C	20°C rise	40°C rise
SLV9080-500KED	50	0.19	0.33	400	120	101	92	39.0	54.5
SLV9080-700KED	70	0.19	0.33	210	94	77	71	39.0	54.5
SLV9080-101KED	100	0.19	0.33	150	73	59	54	39.0	54.5
SLV9080-121KED	120	0.19	0.33	120	60	49	44	39.0	54.5
SLV9080-151KED	150	0.19	0.33	100	47	39	35	39.0	54.5
SLV9080-181KED	180	0.19	0.33	90	41	33	30	39.0	54.5
SLV9080-201KED	200	0.19	0.33	80	37	31	28	39.0	54.5

Notes

Packaging: D = 13″ machine-ready reel. EIA-481 embossed plastic tape (450 parts per reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

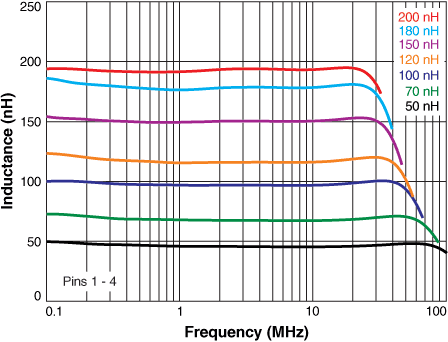

Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.

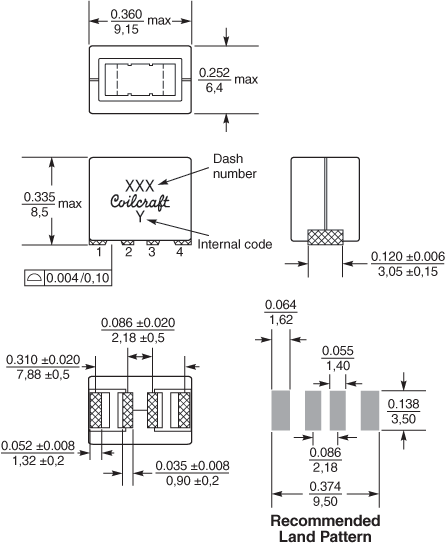

DCR is measured on a micro-ohmmeter at points indicated in the diagram below.

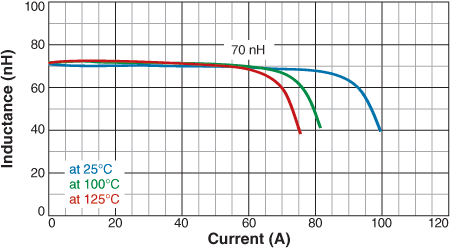

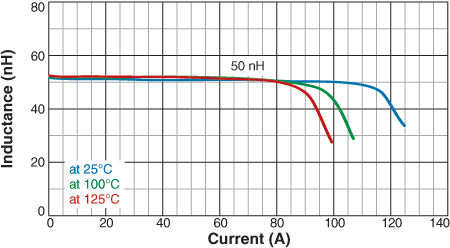

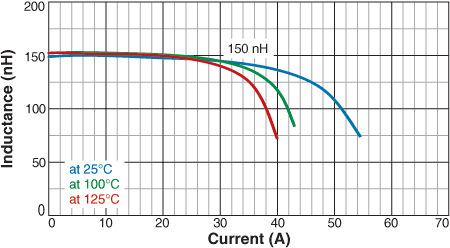

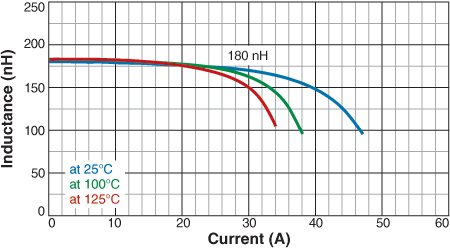

Isat: DC current that causes a 20% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current applied to the primary winding (pins 1 – 4) that causes the specified temperature rise from a 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, air flow, and proximity to other components. Therefore temperature rise should be verified in application conditions. Temperature derating curves.

Termination:

RoHS compliant matte tin over nickel over copper (pins 1 – 4). RoHS compliant tin-silver over copper (pins 2 – 3).

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (450 parts per reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +85°C with (40°C rise) Irms current

Storage temperature range:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+125°C (ambient + temp rise).

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations
