SLV1211 Series

TLVR Shielded Power Inductors

The SLV1211 Series Trans-Inductor Voltage Regulator (TLVR) inductors are designed for use in voltage regulator modules (VRMs) and point-of-load (PoL) converters. With a compact 12 × 6 mm footprint and high power density, these inductors deliver efficient performance in space-constrained designs. This series provides low DCR, tight magnetic coupling, and excellent thermal performance, enabling fast transient response and supporting current ratings up to 150 A. The SLV1211 is well-suited for next-generation CPUs, GPUs, ASICs, and SoCs used in servers, data centers, and various power applications.

Trans-inductor Voltage Regulator (TLVR) inductor
Optimized for fast transient response in multi-phase converter designs
High efficiency with low DCR
High saturation current up to 152 A

Buy Now:

Part number

Find my part

Request a Sample:

Part number

Find my part

Specifications

Electrical specifications at 25°C.

Part number	Inductance (nH) 1 (Tolerance: ±10%)	DCR ± 10% (mΩ) 2		SRF typ (MHz)	Isat (A) 3			Irms (A) 4
Part number	Inductance (nH) 1 (Tolerance: ±10%)	Pri	Sec	SRF typ (MHz)	at 25°C	at 100°C	at 125°C	20°C rise	40°C rise
SLV1211-700KED	70	0.125	0.41	183	152	133	126	43	60
SLV1211-101KED	100	0.125	0.41	138	125	102	97	43	60
SLV1211-121KED	120	0.125	0.41	114	105	87	82	43	60
SLV1211-161KED	160	0.125	0.41	96	77	62	58	43	60
SLV1211-181KED	180	0.125	0.41	79	69	54	51	43	60
SLV1211-201KED	200	0.125	0.41	66	59	47	43	43	60

Notes

Inductance at 100 kHz, 0.1 Vrms, 0 Adc.
DCR is measured on a micro-ohmmeter at points indicated in the diagram below.
Isat: DC current that causes a 20% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current applied to the primary winding (pins 1 – 4) that causes the specified temperature rise from a 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, air flow, and proximity to other components. Therefore temperature rise should be verified in application conditions. Temperature derating curves.

Termination:

RoHS compliant matte tin over nickel over copper.

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (450 parts per reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +85°C with (40°C rise) Irms

Storage temperature range:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+125°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

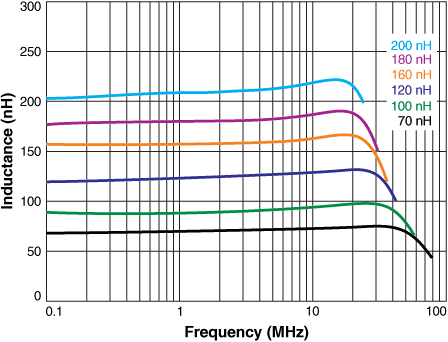

L vs Frequency

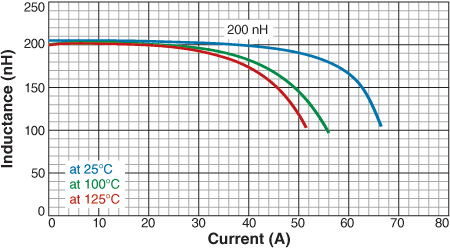

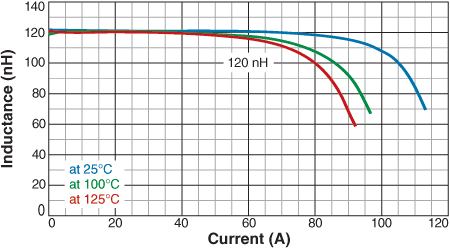

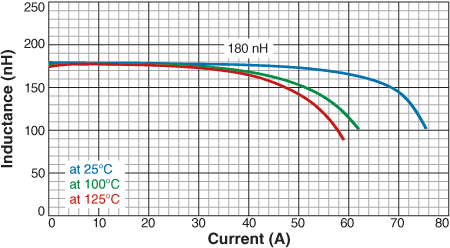

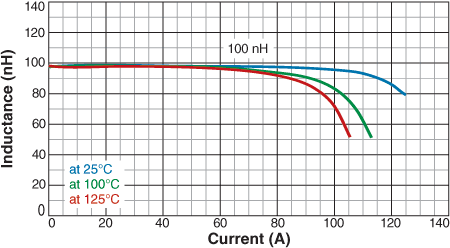

L vs Current vs Temperature

Schematics

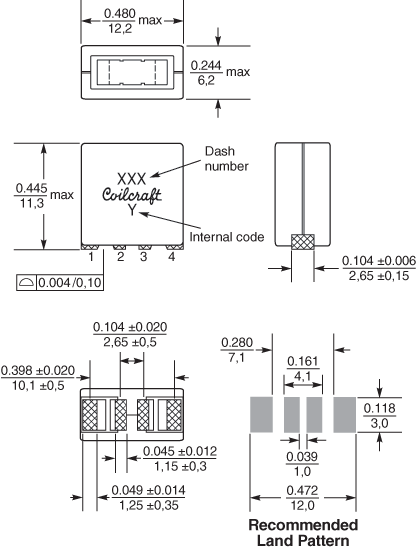

Physical characteristics

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
450	330	100	13	30,4	24,4	24	12	4	2	11,45	0,5

General specification

Core Material:

Ferrite

Weight:

3.5 – 3.6 g

Packaging:

450/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 12 mm pocket spacing, 11.45 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
