Flyback Transformers

for Texas Instruments LM25183 and LM25183-Q1

Six output versions optimized for the LM25183 and LM25183-Q1 primary-side regulated (PSR), no-opto, flyback converters from Texas Instruments
Output versions: ZB1050-AE, ZB1051-AE, ZB1052-AE, ZB1053-AE, ZB1054-AE, and ZB1055-AE
Designed to operate up to 300 kHz with 4 – 42 V input
1500 Vrms, one minute isolation (hipot) between primary and secondary
AEC-Q200 Grade 3 (–40°C to +85°C)

Buy Now:

Part number

Find my part

Count	Unit price
1	$8.15
100	$7.13

For high volume or non-stock items, request a quote.

Packaging

D = 13" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Part number

Find my part

Typical Application

Works with Texas Instruments LM25183 and LM25183-Q1

Part number	Input Voltage	Output	Power	Fsw
ZB1050-AED	4 V — 42 V	3.3 V , 2.5 A	8.25 W	300 kHz
ZB1051-AED	4 V — 42 V	5 V , 2 A	10 W	300 kHz
ZB1052-AED	4 V — 42 V	8 V , 1.2 A	9.6 W	300 kHz
ZB1053-AED	4 V — 42 V	15 V , 0.5 A	7.5 W	300 kHz
ZB1054-AED	4 V — 42 V	24 V , 0.35 A	8.4 W	300 kHz
ZB1055-AED	4 V — 42 V	48 V , 0.2 A	9.6 W	300 kHz

Specifications

Electrical specifications at 25°C.

Part number (Hover for schematics)	Inductance at 0A (µH) 1 (Tolerance: ±10%)	Inductance min at 3 A (µH) 2	DCR max		Leakage Inductance max (µH) 3	Turns Ratio	Isolation Voltage (Vrms) 4
Part number (Hover for schematics)	Inductance at 0A (µH) 1 (Tolerance: ±10%)	Inductance min at 3 A (µH) 2	Pri (Ω)	Sec (Ω)	Leakage Inductance max (µH) 3	Pri : Sec	Isolation Voltage (Vrms) 4
ZB1050-AED	12.5	11.25	0.050	0.021	0.4	1 : 0.25	1500
ZB1051-AED	14.0	12.6	0.045	0.020	0.3	1 : 0.33	1500
ZB1052-AED	14.0	12.6	0.050	0.052	0.3	1 : 0.5	1500
ZB1053-AED	12.5	11.25	0.050	0.054	0.15	1 : 1	1500
ZB1054-AED	12.5	11.25	0.052	0.200	0.13	1 : 2	1500
ZB1055-AED	14.0	12.6	0.050	1.150	0.18	1 : 3	1500

Notes

Inductance is for the primary, measured at 300 kHz, 0.1 Vrms, 0 Adc.
Minimum inductance is for the primary, measured at 300 KHz, 0.1 Vrms, 3 Adc.
Leakage Inductance is for the primary, measured with secondary windings shorted together.
1500 Vrms, one minute isolation (hipot) between primary to secondary.

Termination:

RoHS-compliant. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost.

Packaging:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (350 parts per reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +85°C

Storage temperature range:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+125°C (ambient + temperature rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Schematics

*Connect pin 1 to 2, pin 3 to 4, pin 5 to 6, and pin 7 to 8 on the PC board

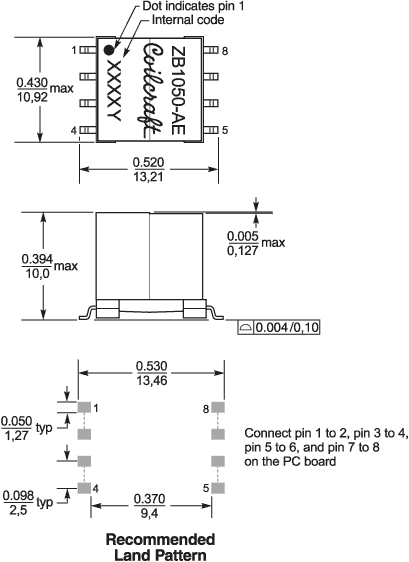

Physical characteristics

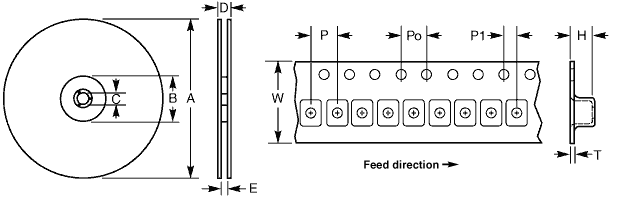

Tape and Reel specification

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
350	330	100	13	30,4	24,4	24	16	4	2	10,35	0,5

General specification

Core Material:

Ferrite

Weight:

2.73 – 2.8 g

Packaging:

350/13″ reel Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 10.35 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
