SER8050-112

Name: SER8050-112MEC
Brand: Coilcraft
SKU: SER8050-112MEC
Price: 0.99 USD
Availability: InStock

SER8050-112MEC

For more information and specification about the part.

Go to series

Buy Now:

Count	Unit price
1	$2.27
100	$2.17
250	$1.67
500	$1.22
1000	$0.99
2000	$0.86
5000	$0.79

For high volume or non-stock items, request a quote.

Tolerance

M = 20%

Termination

E = Tin-silver over nickel

Packaging

C = 7" machine-ready reel

. in stock, ready to ship today.

Request a Sample:

Specifications

Electrical specifications at 25°C.

Low DCR version for high average current applications

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
SER8050-112MEC	1.1	3.19	3.50	109	12.22	13.86	14.50	8.05	11.97

Notes

When ordering, please specify termination and packaging codes: e.g. SER8052-402MED
Inductance measured at 100 kHz, 0.1 Vrms, using an Agilent/HP 4284A or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer and an Agilent/HP 16193A test fixture. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Termination:

E = RoHS compliant tin-silver over tin over nickel over phos bronze (pins 1 and 2); Matte tin over nickel over phos bronze (pin 3).
T = RoHS tin-silver-copper over copper (95.5/4/0.5) on all pins. (Special order, added cost)
S = non-RoHS tin-lead (63/37) on all pins. (Special order, added cost)

Packaging:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).

Environmental

Environmental:

RoHS compliant , halogen free

Ambient temperature range:

–40°C to +85°C with (40°C rise) Irms

Storage temperature range:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

Maximum part temperature:

+125°C (ambient + temp rise)

Failures in Time (FIT) / Mean Time Between Failures (MTBF):

See FIT/MTBF Calculations

Performance curves

Inductance vs Current

Low DCR versions

Inductance vs Current

High Isat Versions

Inductance vs Frequency

Temperature Rise vs Current

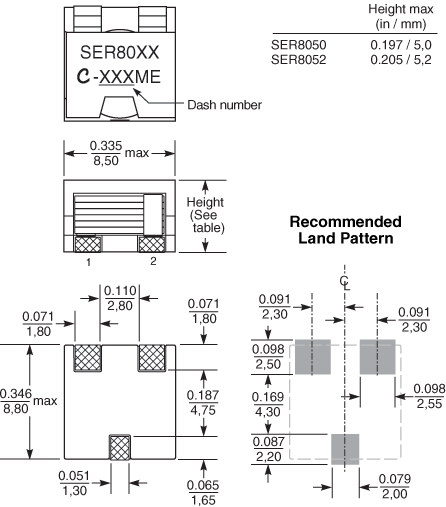

Physical characteristics

Tape and Reel specification

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	5,2	0,4

* Special order

General specification

Core Material:

Ferrite

Weight:

0.86 – 1.0 g

Packaging:

250/7″ reel, 1000/13″ reel; Plastic tape: 16 mm wide, 0.4 mm thick, 12 mm pocket spacing, 5.2 mm pocket depth

Soldering/Washing

Moisture Sensitivity Level (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Resistance to soldering heat:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Refer to Soldering Coilcraft Components before soldering.

PCB Washing:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
