HTX7045 Isolation Transformers

The HTX7045 introduces a chip-style construction that represents an advancement over traditional core and bobbin designs. This innovative approach not only reduces the size of the component, but also streamlines it for highly automated manufacturing process, resulting in a more cost-effective solution. The HTX7045 is particularly well suited for use in gate drive circuits and isolated SPI communication in both industrial and automotive applications.

4K VDC Hi-Pot ideal for isolated SPI communication and gate drive applications
Applications include Battery Management Systems and Industrial Networking
4.9 mm creepage and clearance Material Group 1 (CTI > 600)
- Insulation level may be Functional, Basic, or Reinforced depending on application variables such as working voltage, pollution degree, OVC, and altitude. Please contact Coilcraft for full details.
Reduced board space compared to traditional core and bobbin types
Cost-effective and fully-automated for the highest quality
AEC-Q200 Grade 1 (–40°C to +125°C)

Jetzt kaufen:

Teilenummer

Finde mein Bauteil

Anzahl	Einzelpreis
1	$3,42
100	$2,79
350	$2,09
700	$1,26
1000	$0,98

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

Termination

R = Tin over nickel over silver glass frit

Packaging

C = 7" machine-ready reel

. Auf Lager, noch heute versandbereit.

Muster anfordern:

Teilenummer

Finde mein Bauteil

Technische Daten

Electrical specifications at 25°C.

Teilenummer 1 (Hover for schematics)	Induktivität bei 0A (µH) 2 (Toleranz: ±25%)	DCR max (Ω)		Streu- induktivitätmax (µH) 3	Windungsverhältnis	Kapazität max (pF) 4	Volt-Zeit- Produkt (V-µs)	Isolations- spannung (Vrms) 5
Teilenummer 1 (Hover for schematics)	Induktivität bei 0A (µH) 2 (Toleranz: ±25%)	Pri	Sec	Streu- induktivitätmax (µH) 3	Pri : Sec	Kapazität max (pF) 4	Volt-Zeit- Produkt (V-µs)	Isolations- spannung (Vrms) 5
HTX7045-104CR_	100	0,46	0,80	0,60	1 : 2	18	38,8	2800
HTX7045-184AR_	180	0,55	0,55	1,00	1 : 1	20	51,8	2800

Hinweise

When ordering, please specify turns ratio and packaging codes: e.g. HTX7045-184ARC
Turns ratio: A = 1 : 1, C = 1 : 2
Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc.
Leakage inductance measured at 100 kHz, 0.1 Vrms with secondary pins shorted.
Capacitance measured from pin 1 to pin 3, 250 KHz, 0.1 Vrms.
2800 Vrms, 4000 VDC; one minute isolation (hipot) measured between primary and secondary.

Anschlüsse:

RoHS compliant tin over nickel over silver glass frit.

Verpackung:

C = 7" machine-ready reel
EIA 481 embossed plastic tape (350 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13" machine-ready reel
EIA 481 embossed plastic tape. Factory order only, not stocked (1500 parts per full reel).

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

−40°C to +125°C

Lagertemperaturbereich:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

Maximale Bauteiltemperatur:

+125°C

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

Insertion Loss

Return Loss

Pläne/Diagramme

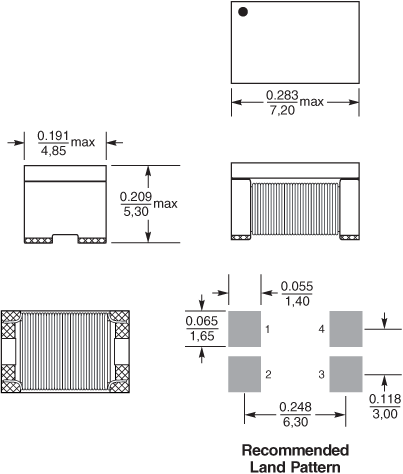

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
350	1500*	178/330	60/100	13	22,4	16,4	16	8	4	2	5,5	0,40

* Special order

Allgemeine Spezifikation

Kernmaterial:

Ferrite

Gewicht:

0.53 − 0.54 g

Verpackung:

350/7" reel; 1500/13" reel Plastic tape: 16 mm wide, 0.4 mm thick, 8 mm pocket spacing, 5.5 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
