XGL5030 Series

Ultra-Low Loss Shielded Power Inductors

RoHS-konform Halogenfrei AEC-Q flag
  • Industry's lowest DCR and ultra low AC losses over a wide frequency range
  • Superior current handling with soft saturation characteristics
  • AEC-Q200 Grade 1 (−40°C to +125°C)
  • Wide inductance range from 0.16 µH to 18 µH
  • RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations
  • COTS Plus tin-silver-copper and tin-lead terminations available
Jetzt kaufen:
Anzahl Einzelpreis
1 $2,34
100 $1,91
250 $1,43
500 $0,86
1000 $0,67
2500 $0,57
5000 $0,53

Für große Mengen oder nicht vorrätige Artikel bitte ein Angebot anfordern.

. Auf Lager, noch heute versandbereit.
Muster anfordern:
Designer-Kits:
Kit Werte Preis
C492 21 (3 of each) $80,00

Technische Daten

Electrical specifications at 25°C. Operating voltage 0 - 80 V

Teilenummer 1 Induktivität (µH) 2
(Toleranz: ±20%)
DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
XGL5030-161ME_ 0,16 1,3 1,6 175 14,0 22,0 32,0 23,0 32,7
XGL5030-331ME_ 0,33 1,8 2,2 110 11,2 17,5 24,0 20,2 27,8
XGL5030-471ME_ 0,47 2,5 3,0 90,0 9,1 14,6 21,0 17,7 24,0
XGL5030-561ME_ 0,56 2,6 3,2 75,0 8,5 12,5 17,5 15,5 21,5
XGL5030-681ME_ 0,68 3,8 4,6 65,0 7,5 12,0 16,8 14,5 20,0
XGL5030-821ME_ 0,82 4,3 5,2 60,0 7,1 11,0 15,2 14,0 19,0
XGL5030-901ME_ 0,90 4,9 5,9 55,0 6,2 9,8 13,6 13,4 18,3
XGL5030-102ME_ 1,0 5,0 6,0 50,0 6,0 9,4 13,1 13,0 17,5
XGL5030-122ME_ 1,2 6,3 7,3 45,0 5,6 8,6 11,7 11,2 15,4
XGL5030-152ME_ 1,5 7,5 8,7 40,0 5,1 7,9 10,9 10,5 14,0
XGL5030-182ME_ 1,8 9,2 10,6 37,0 4,5 7,0 9,7 9,4 12,7
XGL5030-222ME_ 2,2 10,5 11,8 35,0 4,1 6,4 9,0 8,3 11,5
XGL5030-332ME_ 3,3 16,5 18,5 27,0 3,5 5,4 7,4 6,7 9,1
XGL5030-472ME_ 4,7 24,1 27,0 22,0 2,9 4,4 6,0 5,7 7,7
XGL5030-562ME_ 5,6 28,6 32,1 20,0 2,5 4,0 5,6 5,2 7,2
XGL5030-682ME_ 6,8 36,5 41,0 18,0 2,4 3,6 5,0 4,0 5,6
XGL5030-822ME_ 8,2 43,0 48,4 17,0 2,2 3,4 4,6 3,9 5,3
XGL5030-103ME_ 10 50,0 56,5 15,0 2,0 3,0 4,2 3,8 5,2
XGL5030-123ME_ 12 58,5 66,0 14,0 1,8 2,8 3,9 3,5 4,9
XGL5030-153ME_ 15 77,5 87,0 13,0 1,7 2,6 3,5 3,2 4,4
XGL5030-183ME_ 18 96,0 108 11,0 1,5 2,3 3,1 2,7 3,8
Hinweise
  1. When ordering, please specify termination and packaging codes: e.g. XGL5030-183MEC
  2. Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 4395A or equivalent.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
    Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
    Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

Anschlüsse:

  • E = Halogen free component. RoHS compliant tin-silver over copper terminations.
  • T = RoHS tin-silver-copper (95.5/4/0.5)(Special order, added cost)
  • S = non-RoHS tin-lead (63/37)(Special order, added cost)

Verpackung:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (400 parts per full reel).
    Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • D = 13" machine-ready reel
    EIA-481 embossed plastic tape. Factory order only, not stocked (1500 parts per full reel).
Umwelt/Umgebung
Umwelt/Umgebung:
RoHS-konform , Halogenfrei
Umgebungstemperaturbereich:
–40°C to +125°C with (40°C rise) Irms current
Lagertemperaturbereich:
Component: –55°C to +165°C
Tape and reel packaging: –55°C to +80°C
Maximale Bauteiltemperatur:
+165°C (ambient + temp rise)
Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Kennlinien

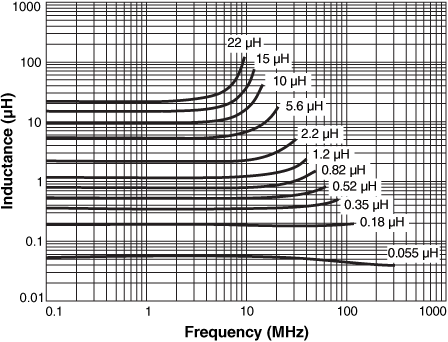

Inductance vs. Frequency

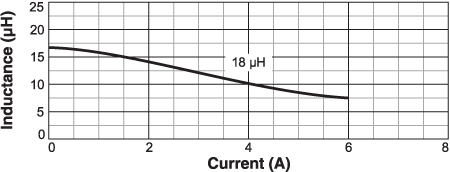

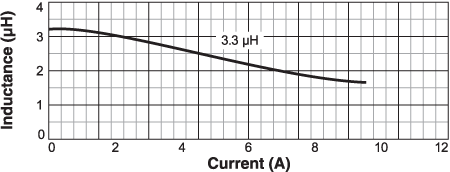

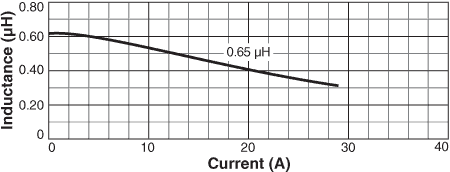

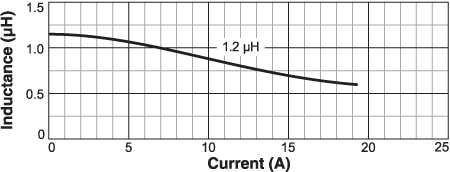

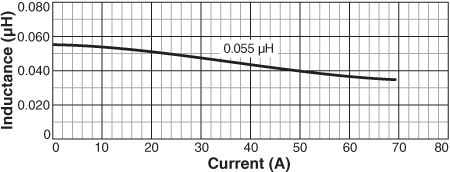

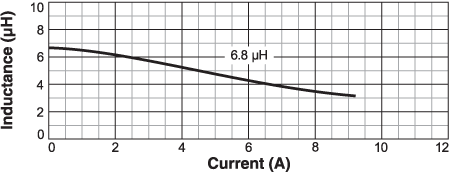

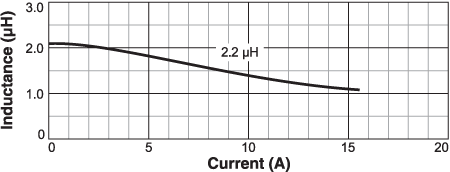

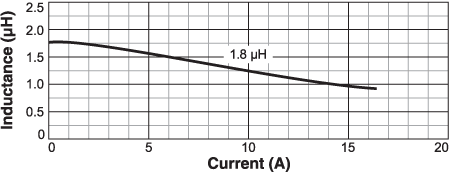

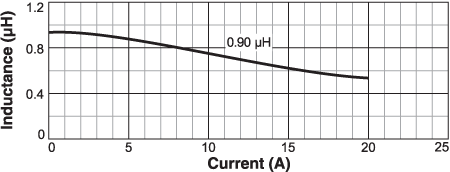

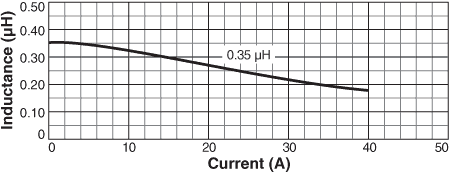

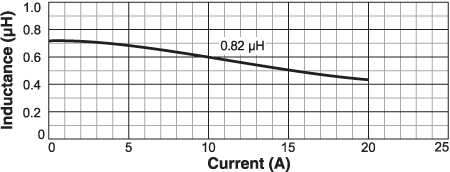

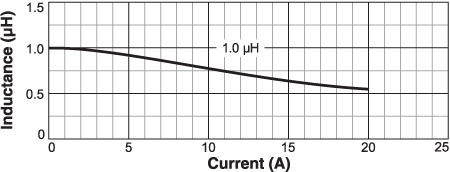

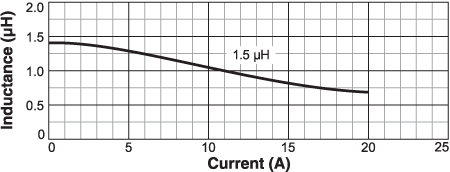

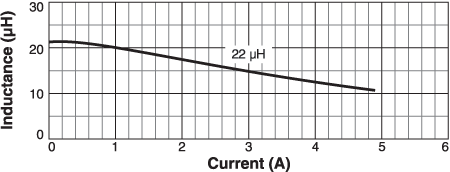

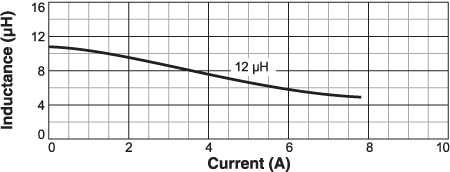

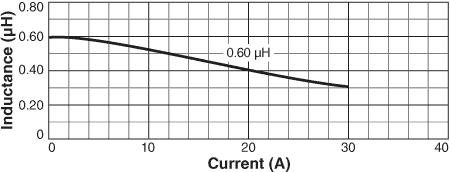

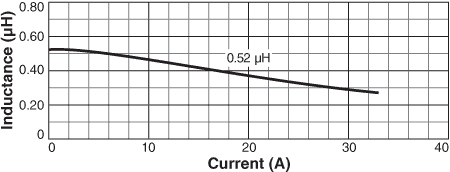

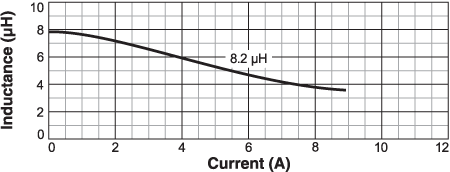

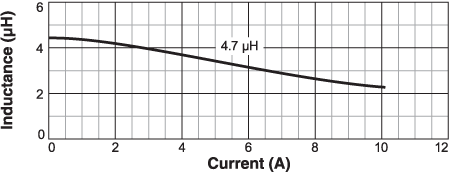

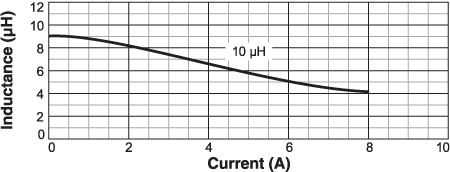

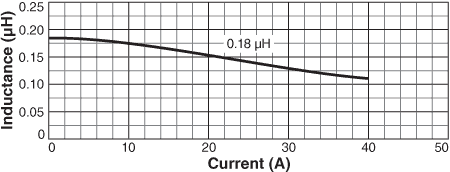

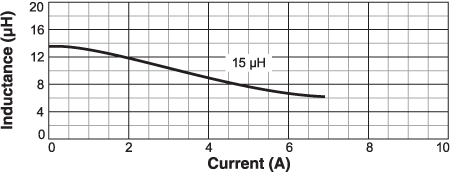

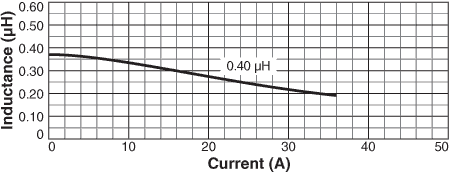

Inductance vs. Current

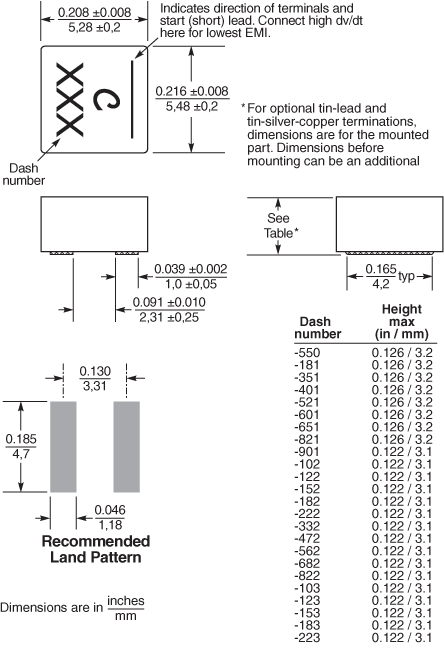

Physikalische Eigenschaften


Gurt/Rolle-Spezifikationen



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_ac.gif
400 1500* 178/330 60/100 13 22,4 16,4 16 12 4 2 3,18 0,3
* Special order

Allgemeine Spezifikation

Kernmaterial:
Composite
Gewicht:
0.27– 0.30 g
Verpackung:
400/7 ″ reel; 1500/13 ″ reel Plastic tape: 16 mm wide, 0.30 mm thick, 12 mm pocket spacing, 3.18 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
Löttemperaturbeständigkeit:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.
Baugruppenreinigung:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
