Datasheet

ZG3673-AE Series

Ultra-Low Loss Shielded Power Inductors

Industry’s lowest DCR and ultra low AC losses
AEC-Q200 qualified
Superior current handling with soft saturation characteristics

Jetzt kaufen:

Muster anfordern:

Technische Daten

Electrical specifications at 25°C. Operating voltage 80 V**

Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
Teilenummer 1	Induktivität (µH) 2 (Toleranz: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
ZG3673-AEC	15	95,5	105,3	15	0,90	1,5	2,1	2,3	3,2

Hinweise

When ordering, please specify packaging code: e.g. ZG3673-AEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured on a micro-ohmmeter. For other operating temperature use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, air flow, and proximity to other components. Therefore temperature rise should be verified in application conditions. Temperature derating curves.

^**Operating voltage: Voltage capability varies by part number and in many cases may be higher than the listed voltage.

Anschlüsse:

E = Halogen free component. RoHS compliant tin-silver (96.5/3.5) over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

Verpackung:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (2000 per full reel). Factory order only, not stocked.

Umwelt/Umgebung

Umwelt/Umgebung:

RoHS-konform , Halogenfrei

Umgebungstemperaturbereich:

−40°C to +125°C with (40°C rise) Irms

Lagertemperaturbereich:

Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C

Maximale Bauteiltemperatur:

+165°C (ambient + temp rise).

Ausfälle pro Zeiteinheit (FIT) / Mittlere Ausfallzeit (MTBF):

See FIT/MTBF Calculations

Kennlinien

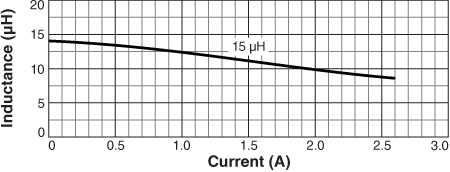

L vs Current

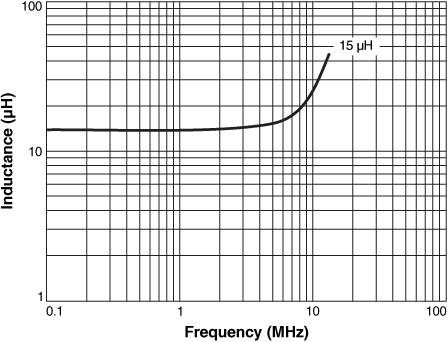

L vs Frequency

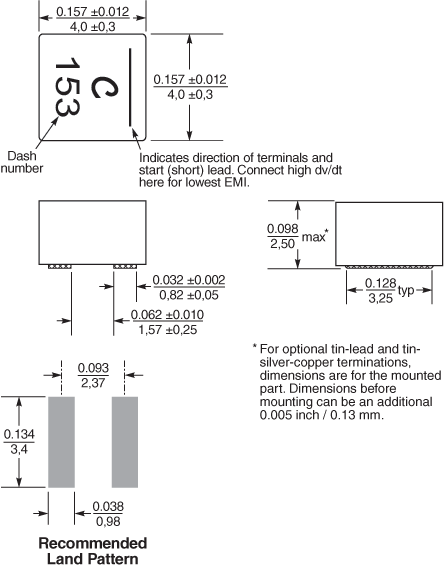

Physikalische Eigenschaften

Gurt/Rolle-Spezifikationen

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	2000*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,25	0,23

* Special order

Allgemeine Spezifikation

Kernmaterial:

Composite

Gewicht:

0.24 g

Verpackung:

500/7″ reel; 2000/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 3.25 mm pocket depth

Löten/Reinigen

Feuchteempfindlichkeitsstufe (MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

Löttemperaturbeständigkeit:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

Vor dem Löten bitte den Beitrag Löten von Coilcraft-Bauelementen lesen.

Baugruppenreinigung:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
