3D Model Datasheet

HA3905 Flyback Transformer

for Microsemi PoE PD Power supply

Developed for use with Microsemi UC3844 Current Mode Controller and LX1752 Buck Regulator
T1 on PoE PD Power Supply Evaluation Board (AN-37)

立即购买:

计数	单价
1	$2.20
175	$2.10
700	$1.75
1400	$1.46
2800	$1.28
5000	$1.11

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

典型应用

与Microsemi UC3844一起使用

输入电压	输出 1		功率	Fsw
输入电压	Sec	Aux	功率	Fsw
36 V — 57 V	5 V , 2.5 A	12 V , 0.02 A	12.5 W	200 kHz

规格

Electrical specifications at 25°C.

零件号 2 (Hover for schematics)	0A时的电感 (µH) 3 (公差: ±10%)	最小电感 1.2 A (µH)	DCR max (Ω)				最大漏电感 (µH) 4	匝数比	隔离电压 (Vrms) 5
零件号 2 (Hover for schematics)	0A时的电感 (µH) 3 (公差: ±10%)	最小电感 1.2 A (µH)	Pri	Sec	Aux	Reset	最大漏电感 (µH) 4	Pri : Sec : Aux : Reset	隔离电压 (Vrms) 5
HA3905-CL_	27.0	24.3	0.170	0.015	0.385	0.371	1.9	1 : 0.267 : 0.735 : 1	1500

注释

Output of the seconday is with the windings connected in parallel.
When ordering, please specify packaging code: HA3905-CLD.
Inductance is for the primary, measured at 250 kHz, 0.1 Vrms, 0 Adc.
Leakage inductance measured on the primary winding with all secondary pins shorted.
1500 Vrms,one minute isolation from primary, auxiliary and reset to secondary;
500 Vrms, one minute isolation from primary and reset to auxiliary

端子:

RoHS-compliant. 260°C compatible. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

-40°C to +85°C

储存温度范围:

Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

Secondary windings to be connected
in parallel on the PC board

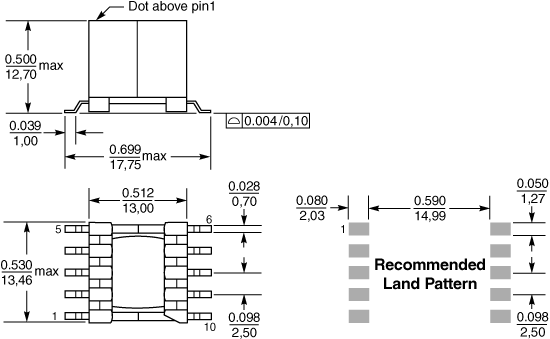

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	38,4	32,4	32	28	4	2	12,93	0,5

一般规格

核心材料:

Ferrite

重量:

6.7 g

包装:

175 per 13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 28 mm pocket spacing, 12.93 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

t Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Only pure water or alcohol recommended
