3D Model Datasheet

C1099 Flyback Transformer

for Maxim MAX5941A PoE Interface

Developed for Maxim MAX5941A PoE Interface/PWM Controller
Interleaved primary and secondary windings
RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations

立即购买:

计数	单价
1	$3.37
200	$2.89
600	$2.52
1200	$1.97
2400	$1.68
5000	$1.54

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

典型应用

与Maxim MAX5941A一起使用

输入电压	输出 1		功率	Fsw
输入电压	Sec	Bias	功率	Fsw
32 V — 56 V	3.3 V , 2.5 A	14 V	8.25 W	300 kHz

规格

Electrical specifications at 25°C.

零件号 2 (Hover for schematics)	0A时的电感 (µH) 3 (公差: ±5%)	最小电感 0.9 A (µH)	DCR max (Ω) 4			最大漏电感 (µH) 5	匝数比 6	隔离电压 (Vrms) 7
零件号 2 (Hover for schematics)	0A时的电感 (µH) 3 (公差: ±5%)	最小电感 0.9 A (µH)	Pri	Sec	Bias	最大漏电感 (µH) 5	Pri : Sec : Bias	隔离电压 (Vrms) 7
C1099-AL_	133	126	0.283	0.013	0.480	3.5	1 : 0.13 : 0.57	1500

注释

Output of the secondary is with the windings connected in parallel. Bias winding output is 14 V.
When ordering, please specify packaging code: e.g. C1099-ALD
Inductance is for the primary, measured at 300 kHz, 1.0 Vrms.
Primary DCR is measured with the windings connected in series. Secondary DCR is measured with the windings connected in parallel.
Leakage inductance is for the primary winding with the secondary winding shorted.
Turns ratio is for the primary connected in series and the secondary connected in parallel.
1500 Vrms, one minute primary to secondary isolation.
500 Vrms, one minute primary to bias isolation.

端子:

RoHS tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (200 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D

环境

环境:

符合RoHS

环境温度范围:

40°C to +125°C

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

Primary windings to be connected in series
and secondary windings to be connected in
parallel on the PC board.

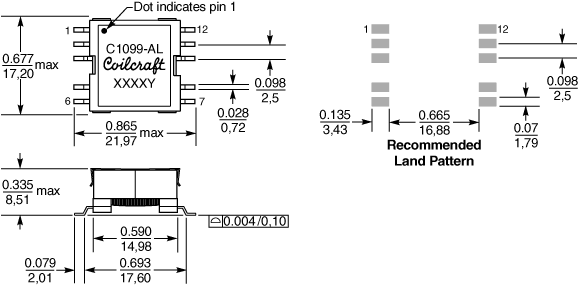

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	28	4	2	9,0	0,37

一般规格

核心材料:

Ferrite

重量:

5.7 g

包装:

200 per 13″ reel Plastic tape: 44 mm wide, 0.37 mm thick, 28 mm pocket spacing, 9.0 mm pocket depth.

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested with pure water or alcohol only. More info.
