No-Opto Flyback Transformers for Analog Devices MAX17690

ZC1570-AE, ZC1642-AE, ZC1645-AE, ZC1641-AE, ZC1644-AE, ZC1649-AE

These flyback transformers are designed to work with the MAX17690 60 V, no-opto isolated flyback controller from Analog Devices. They have no auxiliary winding and offer the greatest efficiency, lowest cost, and smallest size for synchronous isolated DC-DC power converters. They operate with a 10 – 28 V or 20 – 56 V input voltage range and generate three different outputs. These parts have a maximum height of just 6.5 mm, significantly lower than other parts recommended for the same chipset.

Optimized for MAX17690 No-Opto Isolated Flyback Controllers for Analog Devices
Designed for 125 – 170 kHz with 10 – 28 V or 20 – 56 V input voltage
1500 Vrms, one minute isolation (hipot) between primary and secondary windings

立即购买:

零件号

查找我的元件

索取样品:

零件号

查找我的元件

典型应用

与Analog Devices MAX17690一起使用

零件号	输入电压	输出	功率	Fsw
ZC1570-AED	10 V — 28 V	5 V , 1.2 A	6 W	130 kHz
ZC1642-AED	10 V — 28 V	12 V , 0.72 A	8.64 W	170 kHz
ZC1645-AED	10 V — 28 V	24 V , 0.36 A	8.64 W	170 kHz
ZC1641-AED	20 V — 56 V	5 V , 1.2 A	6 W	125 kHz
ZC1644-AED	20 V — 56 V	12 V , 0.72 A	8.64 W	170 kHz
ZC1649-AED	20 V — 56 V	24 V , 0.36 A	8.64 W	170 kHz

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	Isat (A) 2	DCR max (Ω)		最大漏电感 (µH) 3	匝数比	隔离电压 (Vrms) 4
零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	Isat (A) 2	Pri	Sec	最大漏电感 (µH) 3	Pri : Sec	隔离电压 (Vrms) 4
ZC1570-AED	7.85	4.8	0.036	0.007	0.20	1 : 0.375	1500
ZC1642-AED	7.85	4.7	0.035	0.049	0.20	1 : 0.875	1500
ZC1645-AED	7.85	4.5	0.032	0.190	0.20	1 : 1.75	1500
ZC1641-AED	31.4	2.3	0.140	0.007	0.74	1 : 0.375	1500
ZC1644-AED	31.4	2.3	0.137	0.048	0.74	1 : 0.875	1500
ZC1649-AED	31.4	2.3	0.130	0.180	0.60	1 : 1.75	1500

注释

Inductance is for the primary, measured at 0.1 Vrms, 0 Adc.
DC current that causes the primary inductance drop 30% from its value without current. Click for temperature derating information.
Leakage Inductance is for the primary, measured with secondary windings shorted together.
1500 Vrms, one minute isolation (hipot) between primary and secondary windings.

端子:

RoHS tin-silver over tin over nickel over phos bronze.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

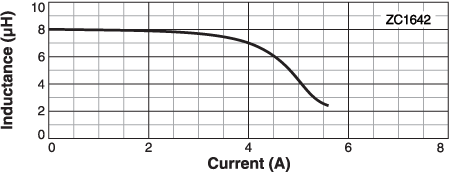

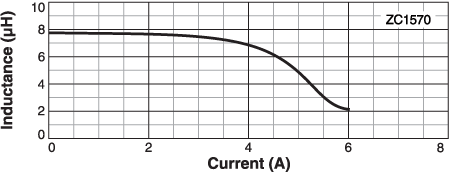

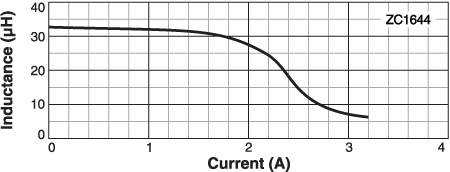

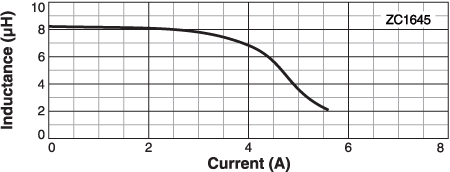

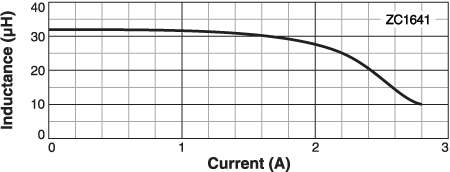

L vs Current

原理图

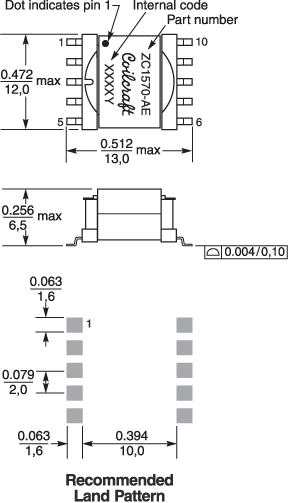

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	330	100	13	30,4	24,4	24	16	4	2	6,13	0,36

一般规格

核心材料:

Ferrite

重量:

1.5 g

包装:

500 per 13″ reel Plastic tape: 24 mm wide, 0.37 mm thick, 16 mm pocket spacing, 6.1 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
