No-Opto Flyback Transformer

符合RoHS
  • Optimized for Maxim's MAXREFDES1226 reference design
    and MAX17690 No-Opto Isolated Flyback Controllers
立即购买:
计数 单价
1 $4.01
100 $3.93
250 $2.95
500 $1.77
1000 $1.38
2500 $1.18
5000 $1.08

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

典型应用

与Maxim MAX17690一起使用

输入电压 输出 功率 Fsw
17 V 36 V 5 V , 1.5 A 7.5 W 250 kHz

规格

Electrical specifications at 25°C.

零件号 0A时的
电感 (µH) 1
(公差: ±10%)
最小电感
  2.6 A (µH) 2
Isat (A) 3 DCR max (Ω) 最大
漏电感
(µH) 4
匝数比 隔离
电压 (Vrms) 5
Pri Sec Pri : Sec
YA9280-AL_ 18.0 15.3 3.8 0.101 0.027 0.572 1 : 0.4 1500
注释
  1. Inductance is for the primary, measured at 150 kHz, 0.1 Vrms, 0 Adc.
  2. Minimum inductance is for the primary, measured at 150 kHz, 0.1 Vrms, 2.6 Adc.
  3. DC current that causes an inductance drop of 30% (typ) from its value without current.
  4. Leakage inductance is for the primary winding with the secondary windings shorted.
  5. Isolation (hipot) measured between windings for one minute.

端子:

  • RoHS tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost.

包装:

  • D = 13" machine-ready reel
    EIA 481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C
储存温度范围:
Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

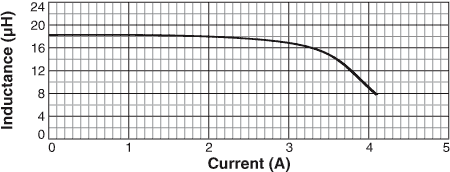

Inductance vs Current

原理图

Connect pins 4 to 5, 2 to 1, 7 to 6,
and 10 to 9 on PC board

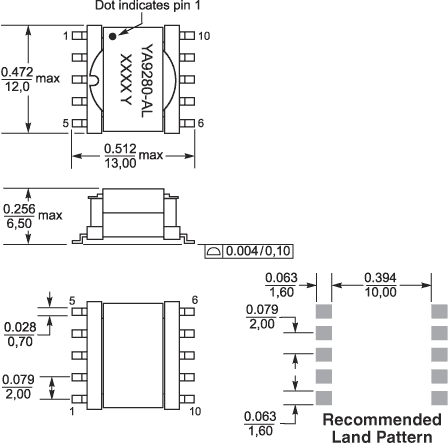

物理特性



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_u.gif
500 330 100 13 30,4 24,4 24 16 4 2 6,13 0,36

一般规格

核心材料:
Ferrite
重量:
1.5 g
包装:
500 per 13″ reel Plastic tape: 24 mm wide, 0.36 mm thick, 16 mm pocket spacing, 6.13 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
