No-Opto Flyback Transformers

Discontinuous conduction mode Flyback transformers
Optimized for 125 – 150 kHz with 8 – 28 V or 18 – 60 V input
1500 Vrms, one minute isolation between primary and secondary

立即购买:

零件号

查找我的元件

计数	单价
1	$4.12
200	$3.68
400	$2.65
1600	$2.07
2600	$1.78
5000	$1.62

对于大批量采购或非库存产品，点击这里请求报价。

Termination

E = Tin-silver-copper over tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

典型应用

与 flyback applications一起使用

零件号	输入电压	输出	功率	Fsw
YA9165-BED	8 V — 28 V	5 V , 2.4 A	12 W	150 kHz
YA9166-BED	8 V — 28 V	12 V , 1 A	12 W	150 kHz
YA9167-BED	8 V — 28 V	24 V , 0.5 A	12 W	150 kHz
YA9168-BED	18 V — 60 V	5 V , 2.4 A	12 W	150 kHz
YA9169-BED	18 V — 60 V	12 V , 1 A	12 W	150 kHz
YA9170-BED	18 V — 60 V	24 V , 0.5 A	12 W	150 kHz

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	Isat (A) 2	DCR max		最大漏电感 (µH) 3	匝数比	隔离电压 (Vrms) 4
零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	Isat (A) 2	Pri (Ω)	Sec (mΩ)	最大漏电感 (µH) 3	Pri : Sec	隔离电压 (Vrms) 4
YA9165-BED	4.0	13.0	0.0156	14.4000	0.15	1 : 0.7	1500
YA9166-BED	4.0	13.0	0.0156	59.8000	0.12	1 : 1.6	1500
YA9167-BED	4.0	13.0	0.0156	190.0000	0.12	1 : 3.14	1500
YA9168-BED	20.0	4.7	0.0360	12.0000	0.40	1 : 0.31	1500
YA9169-BED	20.0	4.7	0.0380	54.0000	0.28	1 : 0.71	1500
YA9170-BED	20.0	4.7	0.0360	195.0000	0.28	1 : 1.39	1500

注释

Inductance is for the primary, measured at 150 kHz, 0.1 Vrms, 0 Adc.
Isat: DC current that causes the primary inductance drop of 30% (typ) from its value without current.
Leakage inductance is for the primary winding with the secondary windings shorted.
Isolation (hipot) measured between windings for one minute.

端子:

RoHS tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

L vs. Current

YA9165, YA9166, YA9167

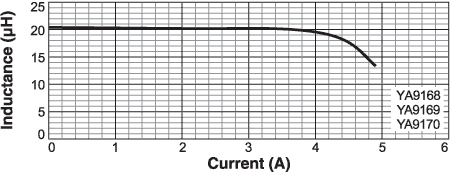

L vs. Current

YA9168, YA9169, YA9170

原理图

YA9165, YA9166, YA9167, YA9170*

*Connect pin 1 to 2 and pin 3 to 4 on the PC board

YA9168, YA9169**

**Connect pin 1 to 2, 3 to 4, 5 to 6, and pin 7 to 8 on the PC board

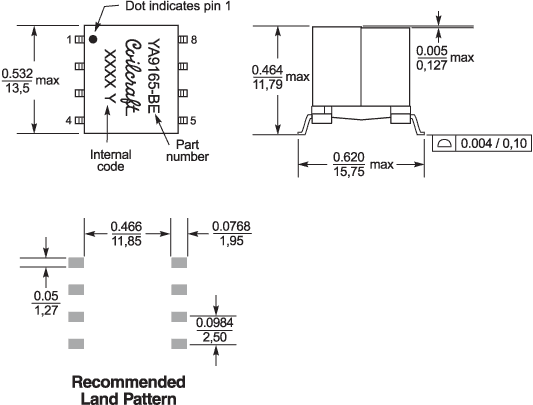

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	38,4	32,4	32	24	4	2	12,0	0,5

一般规格

核心材料:

Ferrite

重量:

4.27 – 4.60 g

包装:

200/13″ reel Plastic tape: 32 mm wide, 0.50 mm thick, 24 mm pocket spacing, 12 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
