ZD2155-AE Isolated Buck Transformer

for STMicroelectronics STEVAL-7BIDIRCB

Optimized for 7 kW bidirectional AC-DC converter STEVAL-7BIDIRCB from STMicroelectronics
Works with A/L6986I as gate driver auxiliary power supply solution
Suitable for isolated IGBT/SiC gate driver
AEC-Q200 qualified

立即购买:

索取样品:

典型应用

与STMicroelectrics STEVAL-7BIDIRCB一起使用

输入电压	输出 1		功率	Fsw
输入电压	Sec1	Sec2	功率	Fsw
12 V	18 V , 0.05 A	5 V , 0.05 A	2.3 W	250 kHz

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 2 (公差: ±10%)	Isat (A) 3	DCR max					最大漏电感 (µH) 4	匝数比 5	隔离电压 (Vrms) 6
零件号 (Hover for schematics)	0A时的电感 (µH) 2 (公差: ±10%)	Isat (A) 3	Pri (Ω)	Sec1 (mΩ)	Sec2 (mΩ)	Sec3 (mΩ)	Sec4 (mΩ)	最大漏电感 (µH) 4	Pri : Sec1 : Sec2	隔离电压 (Vrms) 6
ZD2155-AED	27.0	2.5	0.104	774.0	290.0	774.0	290.0	0.20	1 : 2.66 : 0.77	2000

注释

18 V, 0.05 A output is for Sec1 and Sec3. 5 V, 0.05 A output is for Sec2 and Sec4.
Inductance is for the primary, measured at 250 kHz, 0.1 Vrms, 0 Adc.
DC current that causes the primary inductance to drop 30% from its value without current.
Leakage inductance is for the primary with the secondary windings shorted.
Turns ratio for Pri: Sec1: Sec2: Sec3: Sec4 is 1 : 2.66 : 0.77 : 2.66 : 0.77
2000 Vrms, one minute isolation (hipot) between primary and secondary windings.

端子:

RoHS-compliant, halogen free. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (400 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+165°C (Ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

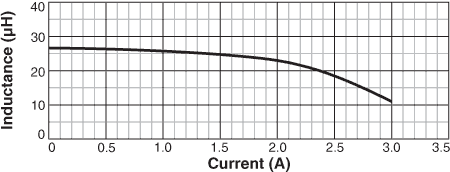

L vs Current

原理图

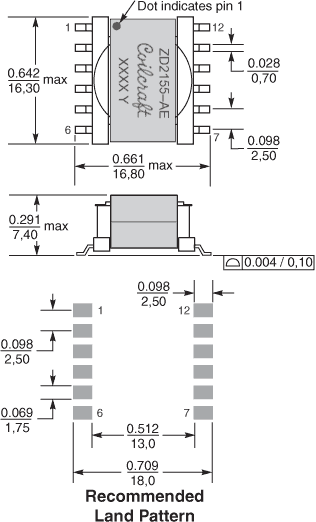

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
400	330	100	13	38,4	32,4	32	20	4	2	7,6	0,4

一般规格

核心材料:

Ferrite

重量:

2.73 g

包装:

400 per 13″ reel Plastic tape: 32 mm wide, 0.4 mm thick, 20 mm pocket spacing, 7.6 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。
