Flyback Transformers

for Linear Technology LT3751

符合RoHS
  • Designed for use with Linear Technology LT3751 Capacitor Charger Controller
  • For charging capacitors to 500 V
  • Coilcraft DA2033-AL and DA2034-AL are specified for 5 A and 10 A applications
COTS Plus tin-silver-copper and tin-lead terminations available
立即购买:
计数 单价
1 $11.30
240 $8.51
480 $5.72
1200 $4.80

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

典型应用

与ADIPowerbyLinear LT3751一起使用

零件号 输入电压 输出 Fsw
GA3460-BL 12 V 24 V 500 V 50 kHz
GA3459-BL 5 V 24 V 500 V 50 kHz

规格

Electrical specifications at 25°C.

零件号 0A时的
电感 (µH) 1
(公差: ±10%)
最小
电感 (µH)
DCR max (mΩ) 2 最大
漏电感
(µH) 3
匝数比 4 隔离
电压 (Vrms) 5
Pri Sec Pri : Sec
GA3460-BL 2.5 2.3 @ 50 A 5.6 400 0.06 1 : 10 1500
GA3459-BL 5.0 4.3 @ 20 A 7.7 515 0.10 1 : 10 1500
注释
  1. Inductance is measured at 50 kHz, 0.1 Vrms.
  2. DCR for the primary is with the windings connected in parallel.
  3. Leakage inductance is for the primary with windings connected in parallel and with the secondary winding shorted.
  4. Turns ratios are with the primary windings connected in parallel.
  5. 1500 Vrms, one minute interwinding isolation

端子:

  • RoHS tin-silver (96.5/3.5) over tin over nickel over phos bronze. Other terminations available at additional cost.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C
储存温度范围:
Component: –40°C to +125°C
Tray packaging: –40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

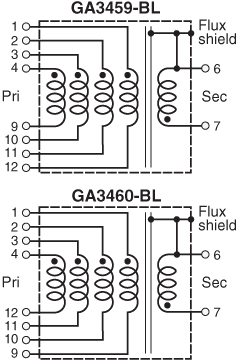

原理图


Primary windings to be connected in parallel
on PC board.
Connect pin 6 to ground.

Note: The primary windings of these transformers
DO NOT have the same pinouts

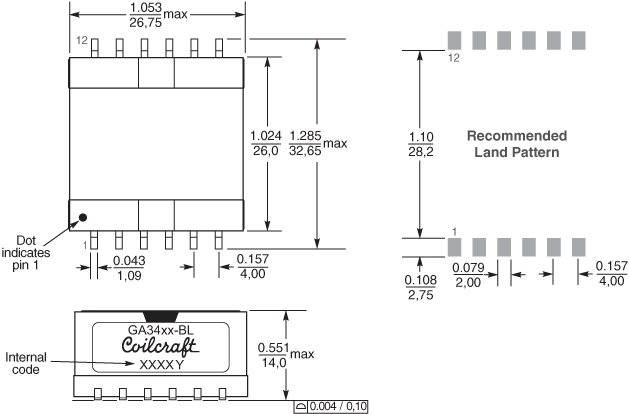

物理特性



一般规格

核心材料:
Ferrite
重量:
24.2 – 27.5 g
包装:
24 per tray

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested with pure water or alcohol only. More info.
