Flyback Transformers

for Linear Technology LT3750 / LT3751

符合RoHS
  • Designed for use with Linear Technology LT3750 Capacitor Charger Controller
  • Smaller footprint than other transformers for this application
  • For charging capacitors to 300 V
  • Shown on LT3750 application note for use in a 300 V, 3 A charging circuit (DA2032); a 300 V, 6 A charging circuit (DA2033); and a 300 V, 9 A charging circuit (DA2034)
  • DA2033-AL and DA2034-AL are also specified for the LT3751 Controller.

立即购买:
计数 单价
1 $4.03
200 $3.45
400 $3.00
1000 $2.34
2400 $2.01
5000 $1.84

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

典型应用

与Analog Devices LT3750一起使用

输入电压 Fsw
3 V 24 V 100 kHz

规格

Electrical specifications at 25°C.

零件号 1
(Hover for schematics)
0A时的
电感 (µH) 2
(公差: ±10%)
最小
电感 (µH)
DCR max (Ω) 3 最大
漏电感
(µH) 4
匝数比 电容
max (pF)
隔离
电压 (Vrms) 5
Pri Sec Pri : Sec
DA2032-AL_ 10.0 9.0 @ 3 A 0.013 1.6 0.150 1 : 10 67 1500
DA2033-AL_ 10.0 9.0 @ 5 A 0.015 1.1 0.144 1 : 10 76 1500
DA2034-AL_ 10.0 9.0 @ 10 A 0.018 1.8 0.250 1 : 10 128 1500
注释
  1. When ordering, please specify packaging code: e.g. DA2034-ALD
  2. Inductance is for the primary, measured at 100 kHz, 0.1 Vrms, 0 Adc.
  3. DCR is at 25°C with the primary windings connected in parallel. For other operating temperatures, use this DCR at Temperature calculator.
  4. Leakage inductance is with the primary windings connected in parallel and with the secondary winding shorted.
  5. 1500 Vrms primary to secondary isolation and 750 Vrms winding to core isolation, tested for one minute.

端子:

  • RoHS compliant tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.

包装:

  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape (DA2032-AL & DA2033-AL: 200 parts per full reel; DA2034-AL: 175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C
储存温度范围:
Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):

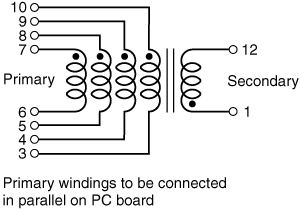

原理图


物理特性

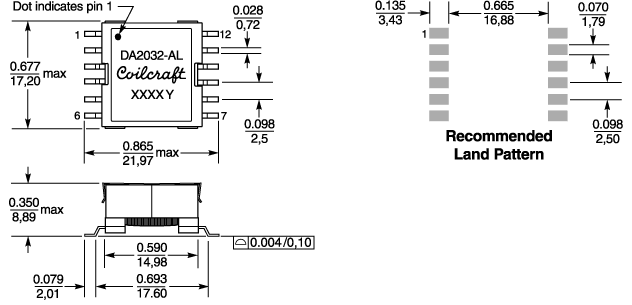

DA2032-AL

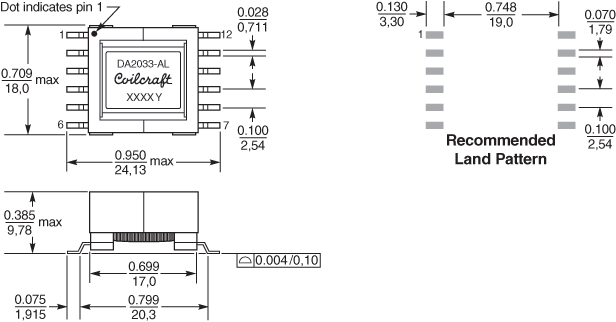

DA2033-AL

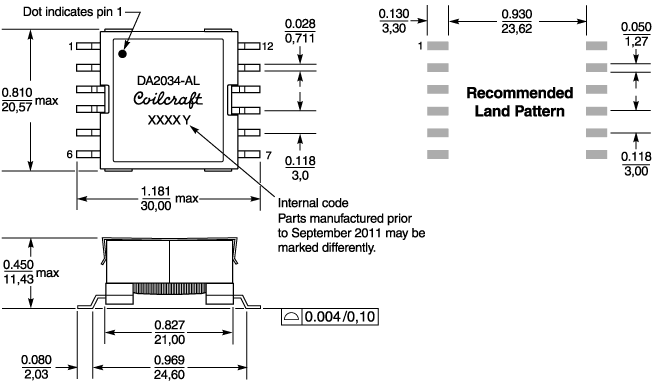

DA2034-AL



卷装规格


Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_c.gif
DA2032-AL 200 330 100 13 50,4 44,4 44 28 4 2 9,6 0,4
DA2033-AL 200 330 100 13 50,4 44,4 44 24 4 2 10,56 0,4
DA2034-AL 175 330 100 13 50,4 44,4 44 32 4 2 11,9 0,4

一般规格

核心材料:
Ferrite
重量:
DA2032: 5.9 g; DA2033: 8.2 g; DA2034: 14.1g
包装:
DA2032-AL 200 per 13″ reel. Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth
DA2033-AL 200 per 13″ reel. Plastic tape: 44 mm wide, 0.4 mm thick, 24 mm pocket spacing, 10.56 mm pocket depth
DA2034-AL 175 per 13″ reel. Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested with pure water or alcohol only. More info.
