DO5010H Series

High Current Surface Mount Power Inductors

符合RoHS AEC-Q flag

Coilcraft DO5010H Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

  • Open magnetic flux path
  • High saturation current ratings
  • High energy storage
  • Industry standard footprint
  • AEC-Q200 Grade 3 (−40°C to +85°C)
立即购买:
计数 单价
1 $1.98
100 $1.58
250 $1.38
500 $1.02
1000 $0.80
2500 $0.63
5000 $0.51

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C355 22 (3 of each) $65.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±20%)
DCR max (mΩ) 3 SRF typ (MHz) 4 Isat (mA) 5 Irms (A) 6
DO5010H-781ML_ 0.78 2.6 156 30000 15.0
DO5010H-152ML_ 1.5 4.0 100 25000 15.0
DO5010H-222ML_ 2.2 6.1 75.0 20000 12.0
DO5010H-332ML_ 3.3 8.6 60.0 17000 10.0
DO5010H-392ML_ 3.9 10.0 55.0 15000 9.0
DO5010H-472ML_ 4.7 14.0 40.0 13000 8.4
DO5010H-602ML_ 6.0 17.0 35.0 12000 7.5
DO5010H-782ML_ 7.8 18.0 35.0 11000 7.5
DO5010H-103ML_ 10 26.0 28.0 10000 6.0
DO5010H-123ML_ 12 28.0 26.0 8500 5.2
DO5010H-153ML_ 15 32.0 20.0 8000 4.4
DO5010H-223ML_ 22 47.0 20.0 7000 3.5
DO5010H-333ML_ 33 66.0 15.0 5500 3.0
DO5010H-473ML_ 47 86.0 9.0 4500 2.6
DO5010H-683ML_ 68 130 8.0 3500 2.3
DO5010H-104ML_ 100 190 7.0 3000 1.8
DO5010H-154ML_ 150 250 6.0 2600 1.5
DO5010H-224ML_ 220 380 5.0 2400 1.2
DO5010H-334ML_ 330 560 4.0 1900 1.0
DO5010H-474ML_ 470 850 3.0 1400 0.82
DO5010H-684ML_ 680 1100 2.0 1200 0.72
DO5010H-105ML_ 1000 1800 2.0 1000 0.56
注释
  1. When ordering, please specify termination and packaging codes: e.g. DO5010H-472MLD
  2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using Agilent/HP 8753D network analyzer.  Details
  5. Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • L = RoHS compliant tin-silver (96.5/3.5) over copper.
  • T = RoHS tin-silver-copper (95.5/4/0.5) over copper. (Special order, added cost)
  • S = non-RoHS tin-lead (63/37) over copper. (Special order, added cost)

包装:

  • 13" reel, machine-ready
    EIA-481 embossed plastic tape. Quantities less than full reel available: in tape
    (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel
    In an effort to simplify our part numbering system, Coilcraft is eliminating the need
    for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C with Irms current, +85°C to +125°C with derated current
储存温度范围:
Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C
最高元件温度:
+125°C (Ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

Inductance vs Frequency

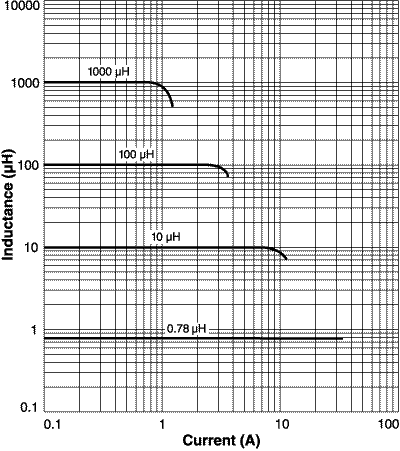

Inductance vs Current

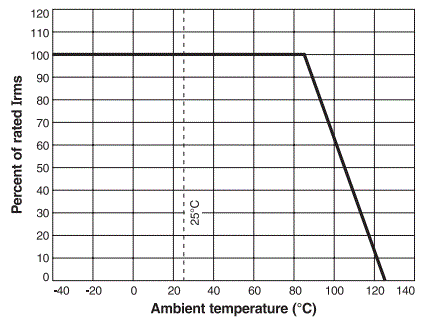

Irms Derating

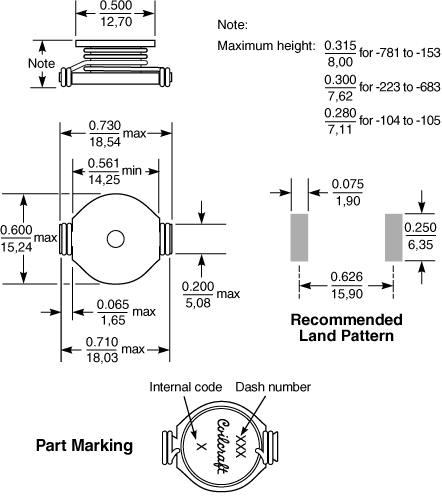

物理特性


卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation‡
13" (330 mm) A B C D E W P Po P1 H T part_or_t-(9).gif or
250 330 100 13 38,4 32,4 32 24 4 2 7,8 0,38
‡ Dot or number marking does not indicate polarity

一般规格

核心材料:
Ferrite
重量:
3.2 – 4.0 g
包装:
250 per 13″ reel Plastic tape: 32 mm wide, 0.38 mm thick, 24 mm pocket spacing, 7.8 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
