DO1605T Series

Low Profile Surface Mount Power Inductors

符合RoHS AEC-Q flag

Coilcraft DO1605T Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

  • Open magnetic flux path
  • High saturation current ratings
  • High energy storage
  • Industry standard footprint
  • AEC-Q200 Grade 3 (−40°C to +85°C)
立即购买:
计数 单价
1 $0.91
500 $0.68
1000 $0.52
2000 $0.42
5000 $0.38

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C353 20 (3 of each) $60.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±20%)
DCR max (Ω) 3 SRF typ (MHz) 4 Isat (mA) 5 Irms (A) 6
DO1605T-102ML_ 1.0 0.04 230 2500 2.3
DO1605T-152ML_ 1.5 0.06 180 2200 2.1
DO1605T-222ML_ 2.2 0.07 140 1800 1.7
DO1605T-332ML_ 3.3 0.12 110 1400 1.3
DO1605T-472ML_ 4.7 0.15 100 1200 1.1
DO1605T-682ML_ 6.8 0.2 80.0 1100 1.0
DO1605T-822ML_ 8.2 0.23 70.0 1000 0.95
DO1605T-103ML_ 10 0.27 60.0 1000 0.90
DO1605T-153ML_ 15 0.35 45.0 800 0.70
DO1605T-223ML_ 22 0.54 35.0 600 0.50
DO1605T-333ML_ 33 0.74 30.0 500 0.45
DO1605T-473ML_ 47 1.1 22.0 450 0.40
DO1605T-683ML_ 68 1.6 20.0 350 0.35
DO1605T-104ML_ 100 2.3 15.0 300 0.30
DO1605T-154ML_ 150 3.5 10.0 250 0.25
DO1605T-224ML_ 220 5.7 9.0 200 0.18
DO1605T-334ML_ 330 8.2 8.0 160 0.16
DO1605T-474ML_ 470 10.8 7.0 140 0.12
DO1605T-684ML_ 680 17.2 5.0 120 0.10
DO1605T-105ML_ 1000 22.6 4.0 80 0.080
注释
  1. When ordering, please specify termination and packaging codes: e.g. DO1605T-105MLC
  2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4263B LCR meter or equivalent.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. For SRF >13 MHz measured using an Agilent/HP 8753D network analyzer. For SRF <13 MHz using Agilent/HP 4192A. Details
  5. Isat: DC current at 25°C that causes a 10% (typ.) inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • L = Silver-palladium-platinum-glass frit terminations.
  • T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

  • C = 7" machine-ready reel
    EIA-481 embossed plastic tape (1000 per full reel).
  • B = Less than full reel
    In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter C instead.
  • 13" reel, machine-ready
    EIA-481 clear plastic tape. Factory order only, not stocked (3500 per full reel).
环境
环境:
符合RoHS
环境温度范围:
−40°C to +85°C with Irms current
储存温度范围:
Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C
最高元件温度:
+125°C (Ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

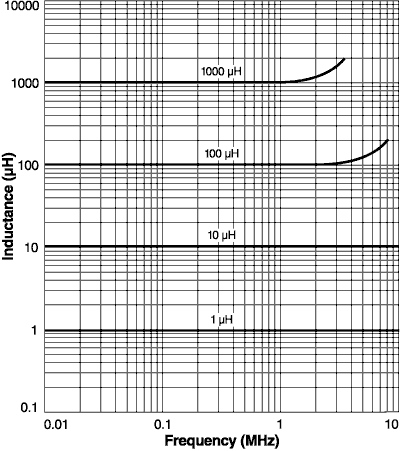

Inductance vs Frequency

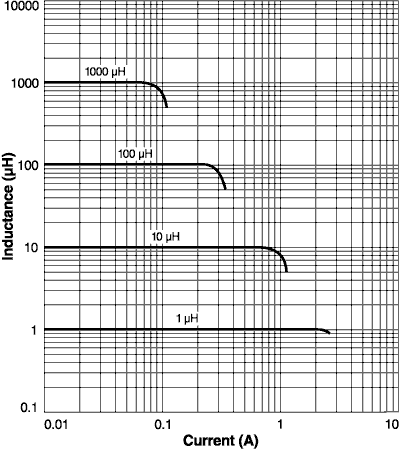

Inductance vs Current

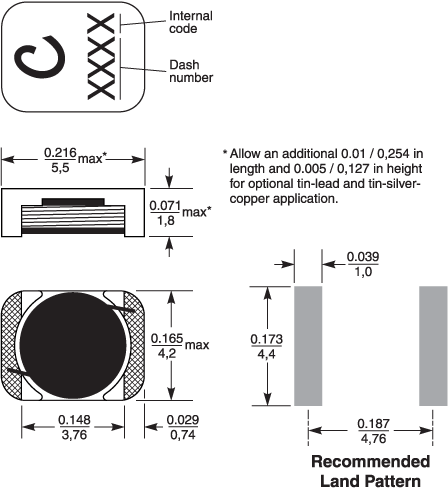

物理特性





卷装规格




Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation‡
7" (178 mm) 13" (330 mm) A B C D W P Po P1 H T part_or_ac.gif
1000 3500* 178/330 60/100 13 18,4 12 8 4 2 2,5 0,25
* Special order
‡ Part marking does not indicate polarity


一般规格

核心材料:
Ferrite
重量:
101 – 110 mg

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
