DO3316H Series

High Current Surface Mount Power Inductors

符合RoHS AEC-Q flag

Coilcraft DO3316H Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

  • Open magnetic flux path
  • High saturation current ratings
  • High energy storage
  • Industry standard footprint
  • AEC-Q200 Grade 3 (−40°C to +85°C)
Need parts for space, military or other critical applications?
See Coilcraft CPS 563PKA series.
立即购买:
计数 单价
1 $1.07
750 $0.80
1500 $0.59
3000 $0.48
6000 $0.43

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C326 10 (3 of each) $40.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2 公差 (%) 3 DCR max (Ω) 4 SRF typ (MHz) 5 Isat (mA) 6 Irms (A) 7
DO3316H-121ML_ 0.12 20 0.0015 200 28000 17.0
DO3316H-331ML_ 0.33 20 0.0020 200 20000 16.0
DO3316H-681ML_ 0.68 20 0.0050 200 13000 12.0
DO3316H-102ML_ 1.0 20 0.0060 100 11000 10.0
DO3316H-152ML_ 1.5 20 0.0080 90.0 9000 9.0
DO3316H-222_L_ 2.2 10,20 0.011 80.0 7800 7.4
DO3316H-272_L_ 2.7 10,20 0.012 65.0 7000 6.6
DO3316H-332_L_ 3.3 10,20 0.014 60.0 6400 5.9
DO3316H-392_L_ 3.9 10,20 0.015 50.0 5900 5.3
DO3316H-472_L_ 4.7 10,20 0.018 45.0 5400 4.8
注释
  1. When ordering, please specify tolerancetermination and packaging codes: e.g. DO3316H-472MLD
  2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
  3. Tolerances in bold are stocked for immediate shipment.
  4. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  5. SRF measured using an Agilent/HP 8753D network analyzer. Details
  6. Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current. Temperature derating curves.
  7. Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

公差:

  • M = 20%, K = 10% (Table above shows stock tolerances in bold.)

端子:

  • L = RoHS compliant tin-silver (96.5/3.5) over copper.
  • T = RoHS tin-silver-copper (95.5/4/0.5) over copper. (Special order, added cost)
  • S = non-RoHS tin-lead (63/37) over copper. (Special order, added cost)

包装:

  • D = 13" reel, machine-ready
    EIA-481 embossed plastic tape (750 parts per full reel).
  • B = Less than full reel
    In tape, not machine ready. To have a leader and trailer added ($25 charge), use code letter D instead.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C with Irms current
储存温度范围:
Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C
最高元件温度:
+125°C (Ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

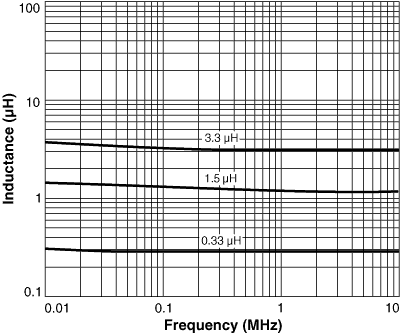

Inductance vs Frequency

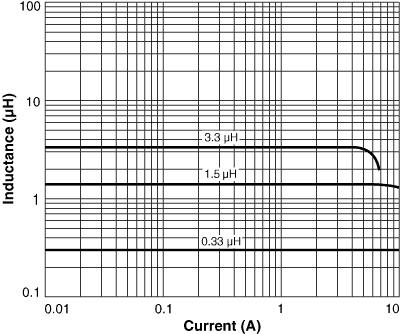

Inductance vs Current

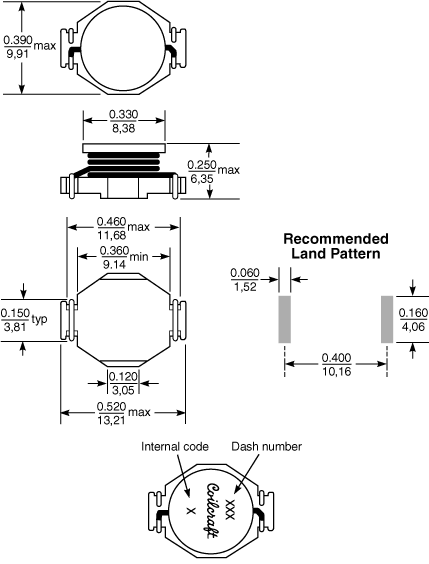

物理特性




卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation ‡
13" (330 mm) A B C D E W P Po P1 H T part_or_t-(4).gif or
750 330 100 13 30,4 24,4 24 12 4 2 6,4 0,35
‡ Dot or number marking does not indicate polarity

一般规格

核心材料:
Ferrite
重量:
0.95– 1.25 g
包装:
750 per 13″ reel Plastic tape: 24 mm wide, 0.35 mm thick, 12 mm pocket spacing, 6.4 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
