SER20xx Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.
  • Rugged flat wire construction
  • Exceptionally low DC resistance
  • Ferrite core for flat L vs. I characteristics
  • Magnetically shielded to minimize EMI
  • AEC-Q200 Grade 3 (-40°C to +85°C)
Need parts for space, military or other critical applications?
See Coilcraft CPS 63x/64xPTA series.
立即购买:
计数 单价
1 $1.91
200 $1.53
600 $1.33
1200 $1.02
2400 $0.88
5000 $0.81

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C374 9 (2 of each) $60.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH) 2
(公差: ±20%)
DCR (mΩ) 3 SRF typ (MHz) 4 Isat (mA) 5 Irms (A) 6
typ max 20°C rise 40°C rise
SER2009-301ML_ 0.30 0.63 0.74 550 100000 41.0 54.0
SER2010-301ML_ 0.30 0.90 1.0 182 100000 36.0 45.0
SER2009-501ML_ 0.50 0.63 0.74 544 60000 41.0 54.0
SER2010-501ML_ 0.50 0.90 1.0 148 81000 36.0 45.0
SER2011-501ML_ 0.50 1.2 1.3 161 100000 30.0 40.0
SER2009-601ML_ 0.60 0.63 0.74 648 49000 41.0 54.0
SER2010-601ML_ 0.60 0.90 1.0 115 70000 36.0 45.0
SER2011-601ML_ 0.60 1.2 1.3 124 90000 30.0 40.0
SER2012-601ML_ 0.60 1.4 1.6 115 97000 25.0 35.0
SER2009-681ML_ 0.68 0.63 0.74 454 45000 41.0 54.0
SER2010-681ML_ 0.68 0.90 1.0 136 62000 36.0 45.0
SER2011-681ML_ 0.68 1.2 1.3 135 78000 30.0 40.0
SER2012-681ML_ 0.68 1.4 1.6 103 85000 25.0 35.0
SER2013-681ML_ 0.68 1.7 1.8 104 98000 23.0 30.0
SER2009-801ML_ 0.80 0.63 0.74 567 38000 41.0 54.0
SER2010-801ML_ 0.80 0.90 1.0 92.0 53000 36.0 45.0
SER2011-801ML_ 0.80 1.2 1.3 113 70000 30.0 40.0
SER2012-801ML_ 0.80 1.4 1.6 91.0 75000 25.0 35.0
SER2013-801ML_ 0.80 1.7 1.8 93.0 85000 23.0 30.0
SER2014-801ML_ 0.80 1.9 2.2 104 98000 21.0 27.0
SER2009-901ML_ 0.90 0.63 0.74 557 33000 41.0 54.0
SER2010-901ML_ 0.90 0.90 1.0 96.0 48000 36.0 45.0
SER2011-901ML_ 0.90 1.2 1.3 104 62000 30.0 40.0
SER2012-901ML_ 0.90 1.4 1.6 85.0 69000 25.0 35.0
SER2013-901ML_ 0.90 1.7 1.8 98.0 73000 23.0 30.0
SER2014-901ML_ 0.90 1.9 2.2 102 87000 21.0 27.0
SER2009-102ML_ 1.0 0.63 0.74 488 29000 41.0 54.0
SER2010-102ML_ 1.0 0.90 1.0 81.0 42000 36.0 45.0
SER2011-102ML_ 1.0 1.2 1.3 97.0 56000 30.0 40.0
SER2012-102ML_ 1.0 1.4 1.6 75.0 64000 25.0 35.0
SER2013-102ML_ 1.0 1.7 1.8 98.0 68000 23.0 30.0
SER2014-102ML_ 1.0 1.9 2.2 88.0 70000 21.0 27.0
SER2009-122ML_ 1.2 0.63 0.74 81.0 28000 41.0 54.0
SER2010-122ML_ 1.2 0.90 1.0 69.0 37000 36.0 45.0
SER2011-122ML_ 1.2 1.2 1.3 81.0 49000 30.0 40.0
SER2012-122ML_ 1.2 1.4 1.6 73.0 54000 25.0 35.0
SER2013-122ML_ 1.2 1.7 1.8 82.0 58000 23.0 30.0
SER2014-122ML_ 1.2 1.9 2.2 78.0 63000 21.0 27.0
SER2009-202ML_ 2.0 0.63 0.74 40.0 16000 41.0 54.0
SER2010-202ML_ 2.0 0.90 1.0 48.0 27000 36.0 45.0
SER2011-202ML_ 2.0 1.2 1.3 56.0 37000 30.0 40.0
SER2012-202ML_ 2.0 1.4 1.6 51.0 35000 25.0 35.0
SER2013-202ML_ 2.0 1.7 1.8 61.0 40000 23.0 30.0
SER2014-202ML_ 2.0 1.9 2.2 62.0 45000 21.0 27.0
SER2013-362ML_ 3.6 1.7 1.8 38.0 25000 23.0 30.0
SER2013-402ML_ 4.0 1.7 1.8 35.0 20000 23.0 30.0
SER2014-402ML_ 4.0 1.9 2.2 36.0 25000 21.0 27.0
SER2013-472ML_ 4.7 1.7 1.8 30.0 18000 23.0 30.0
注释
  1. When ordering, please specify termination and packaging codes: e.g. SER2000-132MLD
  2. Inductance measured at 100 kHz, 0.1 Vrms, using an Agilent/HP 4263B or equivalent.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 4395A network analyzer and an Agilent/HP 16092A test fixture. Details
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves. When Irms is greater than Isat,Isat is the more critical specification and Irms is shown in gray type. See temperature rise vs Current.



端子:

  • L = RoHS compliant tin-silver-copper (96.5/3.5) over copper.
  • T = RoHS tin-silver-copper (95.5/4/0.5) over copper (Special order, added cost)
  • S = non-RoHS tin-lead (63/37) over copper. (Special order, added cost)

包装:

  • 13" reel, machine-ready  EIA-481 embossed plastic tape, 44 mm wide.
    SER2009: 200 parts/reel         SER2010: 200 parts/reel         SER2011: 170 parts/reel
    SER2012: 150 parts/reel           SER2013: 150 parts/reel          SER2014: 125 parts/reel
  • B = Less than full reel In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter D instead.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C with (40°C rise) Irms
储存温度范围:
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+125°C (ambient + temp rise).
故障率(FIT)/平均故障间隔时间(MTBF):
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

性能曲线

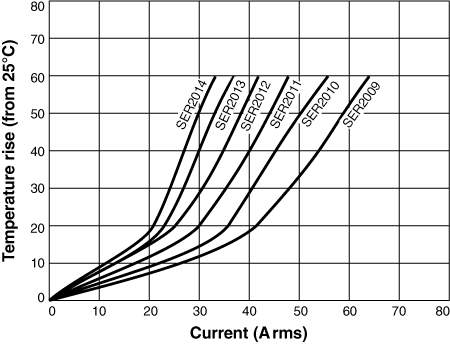

Temperature Rise vs. Current

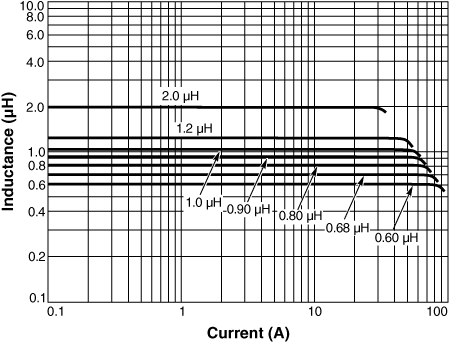

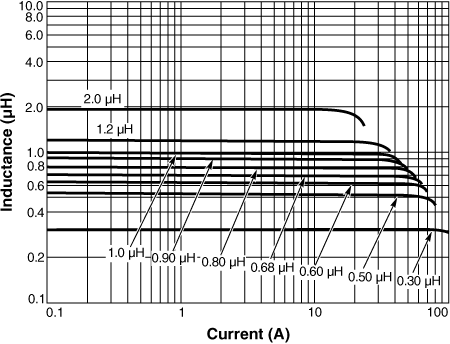

Inductance vs. Current

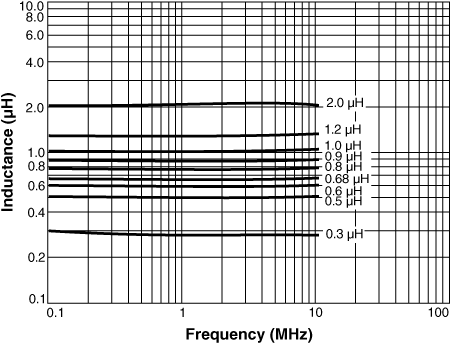

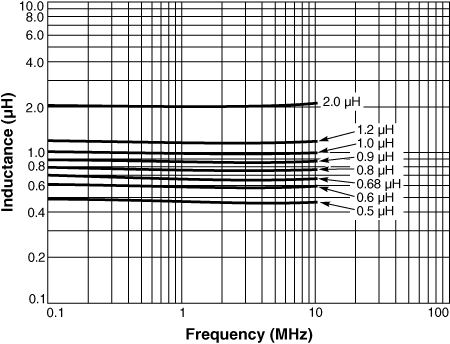

Inductance vs. Frequency

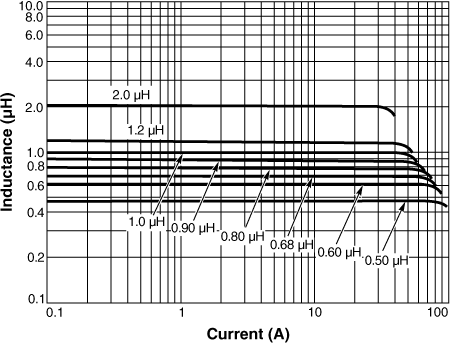

Inductance vs. Current

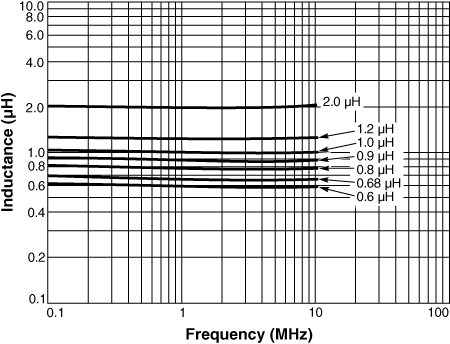

Inductance vs. Frequency

Inductance vs. Current

Inductance vs. Frequency

Inductance vs. Current

Inductance vs. Frequency

Inductance vs. Current

Inductance vs. Frequency

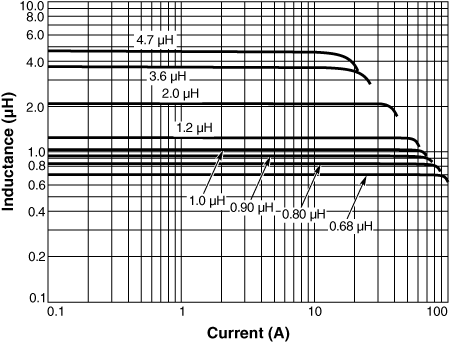

Inductance vs. Current

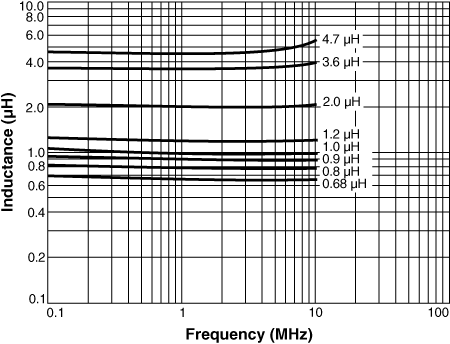

Inductance vs. Frequency

原理图


物理特性


卷装规格



  Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
  13" (330 mm) A B C D E W P Po P1 H T part_or_r-(1).gif
SER2009 200 330 100 13 50,4 44,4 44 32 4 2 9,25 0,4
SER2010 200 330 100 13 50,4 44,4 44 32 4 2 10,5 0,4
SER2011 170 330 100 13 50,4 44,4 44 32 4 2 11,6 0,4
SER2012 150 330 100 13 50,4 44,4 44 32 4 2 13,0 0,4
SER2013 150 330 100 13 50,4 44,4 44 32 4 2 14,0 0,4
SER2014 125 330 100 13 50,4 44,4 44 32 4 2 15,0 0,5

一般规格

核心材料:
Ferrite
重量:
SER2009 = 6.65 – 6.89 g; SER2010 = 7.46 – 7.90 g; SER2011 = 8.63 – 9.08 g; SER2012 = 9.92 – 10.3 g; SER2013 = 10.8 – 11.4 g; SER2014 = 11.7 – 12.4 g
包装:
SER2009: 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 9.25 pocket depth
SER2010: 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 10.5 pocket depth
SER2011: 170 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.6 pocket depth
SER2012: 150 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 13.0 pocket depth
SER2013: 150 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 14.0 pocket depth
SER2014: 125 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 15.0 pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
